CAMSO

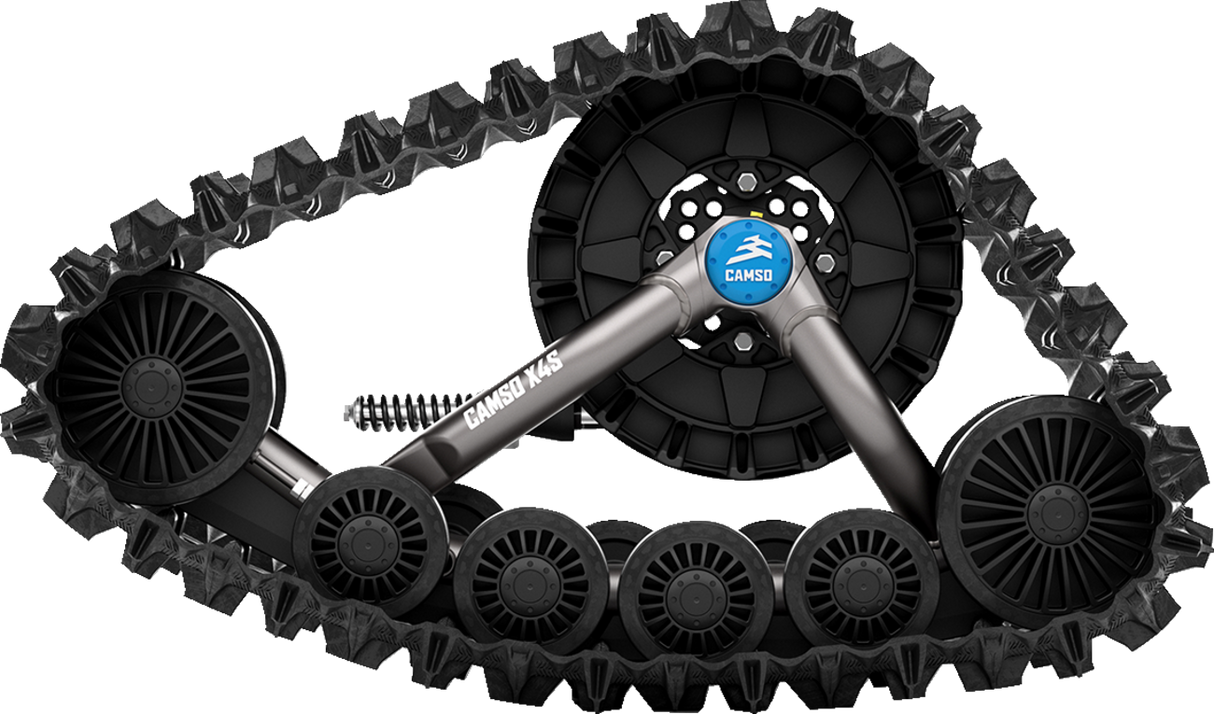

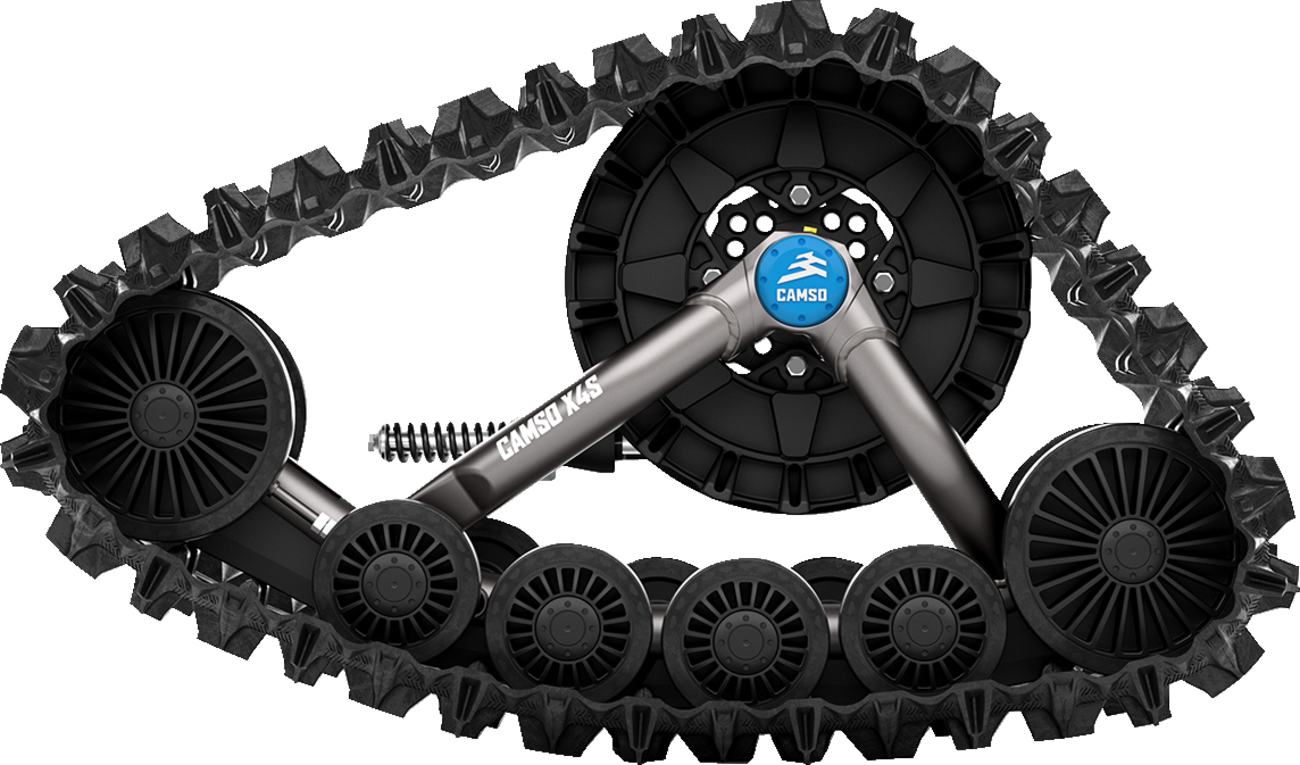

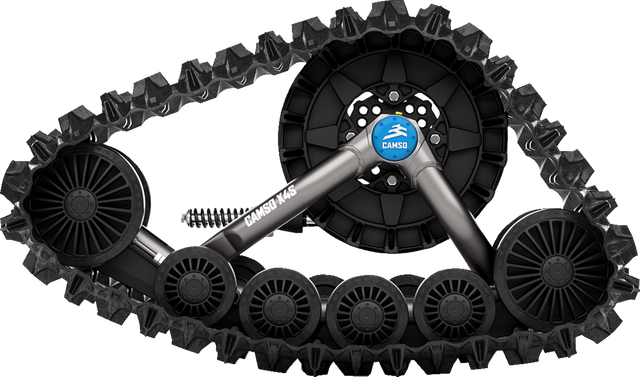

ATV X4S Track System 2002 - 2006

SKU: 4510-1298
$5,049.00
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

ATV X4S Track System 2002 - 2006 is backordered and will ship as soon as it is back in stock.

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

Front-mounted tracks with flexible sides and a slight curve toward the inside for stable handling and a more comfortable ride

Double bearing hubs and oil bath housing for optimum durability

Bolted idler and midroller wheels feature interchangeable double bearings for increased durability and easier maintenance

Specification
Front Ground Clearance 390 mm (15-3 / 8\")
Front Height 23-3 / 4\"
Front Track Length 93-3 / 8\"
Front Track Width 11-1 / 2\" / 292 mm
Ground Surface 1,30 m² (2000 square inch)
Lug Height 1-1 / 4\"
Model ATV X4S
Product Name Track System
Rear Ground Clearance 372 mm (14-5 / 8\")
Rear Height 23-1 / 4\"
Rear Track Length 98-1 / 2\"
Rear Track Width 318 mm (12-1 / 2\") / 12-1 / 2\"
Riding Style ATV / Snow
Units Each

Fitment
MakeModelYear
Can-AmTraxter 650 CVT 4x42005
Can-AmQuest 500 4x42002-2004
Can-AmQuest 500 XT 4x42004
Can-AmQuest Max 650 4x42004
Can-AmQuest 650 XT 4x42002-2004
Can-AmQuest 500 2x42002-2003
Can-AmQuest 650 4x42002-2004
John DeereTrail Buck 5002005-2006
John DeereBuck 5002005-2006
John DeereTrail Buck 650 4x42005-2006
John DeereBuck 6502006
John DeereTrail Buck 500 auto2005

Package Info

PropertyValue
Weight0.01
Height0.1
Length0.1
Width0.1
