BELT DRIVES LTD.

1-1/2\" Belt Drive - 4-Speed 1970 - 1983

SKU: 1120-0248
$1,116.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

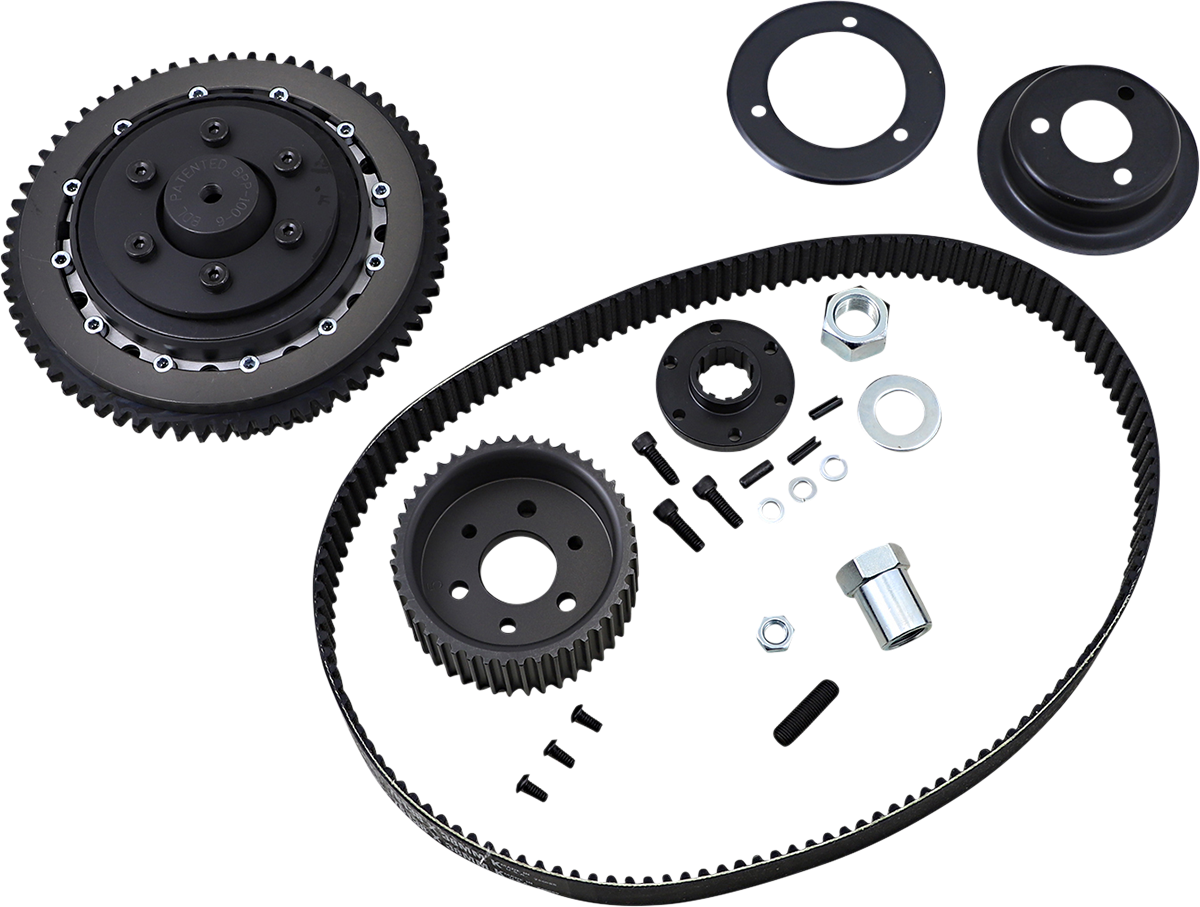

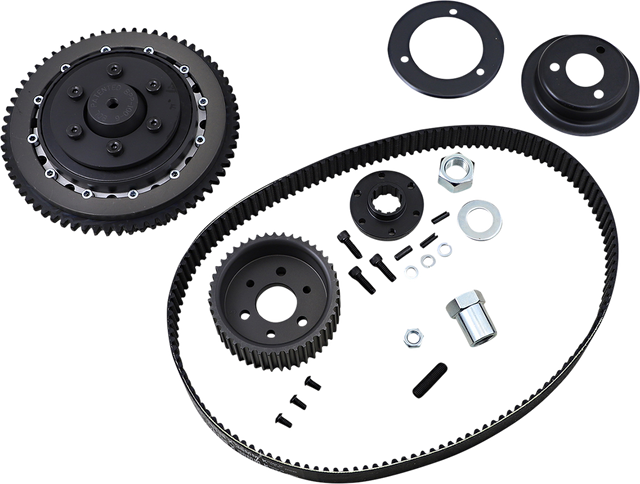

1-1/2\" and 1-5/8\" kits include front pulley, belt, clutch hub, clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates)

Direct bolt-in applications

3\" electric start kit includes front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061 T-6 billet motor plate, outside guard and polished pulley cover

All systems come with the Quiet Clutch system

Precision-machined, polished aluminum pressure plate uses nine springs and shoulder bolts to ensure even spring pressure (included in kit)

Rear pulley has a 40mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch

Made in the U.S.A.

3\" system is not designed for use with floorboards.

Not for use with offset primaries.

Specification
Material 6061 T-6 Billet Aluminum / Kevlar / Steel
Product Name Belt Drive Kit
Riding Style Street
Units Each
Width 1-1 / 2\"

Fitment
MakeModelYear
Harley-Davidson1200 Super Glide FX1971-1978
Harley-Davidson1200 Fat Bob FXEF1979-1980
Harley-DavidsonWide Glide FXWG1980-1983
Harley-Davidson1200 Low Rider FXS1977-1979
Harley-Davidson1200 Super Glide FXE1974-1980
Harley-DavidsonFat Bob FXEF1979-1981
Harley-DavidsonLow Rider FXS1979-1982
Harley-Davidson1200 Electra Glide FLH1970-1980
Harley-DavidsonElectra Glide FLH1978-1981
Harley-DavidsonElectra Glide Heritage FLH1981
Harley-DavidsonElectra Glide Sport FLHS1980-1982
Harley-DavidsonDisc Glide FXDG1983
Harley-DavidsonElectra Glide FL1970-1980
Harley-DavidsonElectra Glide Classic FLH1981-1982
Harley-DavidsonSuper Glide 80 FXE1979-1983

Package Info

PropertyValue
Weight14.8
Height5.47
Length17.32
Width11.45

BELT DRIVES LTD.

1-1/2\" Belt Drive - 4-Speed 1970 - 1983

$1,116.95

1-1/2\" and 1-5/8\" kits include front pulley, belt, clutch hub, clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates)

Direct bolt-in applications

3\" electric start kit includes front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061 T-6 billet motor plate, outside guard and polished pulley cover

All systems come with the Quiet Clutch system

Precision-machined, polished aluminum pressure plate uses nine springs and shoulder bolts to ensure even spring pressure (included in kit)

Rear pulley has a 40mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch

Made in the U.S.A.

3\" system is not designed for use with floorboards.

Not for use with offset primaries.
