REVO ATS Adjustable Air-Assisted Coil Suspension System 2019 - 2025

Legend’s patented design features an independently adjustable (front-to-rear) air-assisted coil suspension for hard-working utility UTV\'s

Industry-exclusive, integrated helper air springs, offer a wide range of adjustability to improve ground clearance, chassis leveling, and reduce bottoming under heavy loads

Designed to optimize ride quality and maintain the factory ride height of UTV\'s regardless of cargo, accessory, or attachment weights

Custom coil spring rates improve ride quality when UTV is in an unloaded state

Engineered to allow UTV\'s to be loaded to the OE manufacturer\'s GVWR without jeopardizing stability, safety, or comfort

Aramid fiber-impregnated air springs provide high puncture resistance and unmatched durability

Features heavy-duty 46 mm billet aluminum dampers with 16 mm hard chrome shafts for exceptional strength

Easy access knob allows tool-free rebound adjustment for precise, fast, and repeatable adjustments for fine-tuning ride quality and performance across the entire damping profile

Type III hard coat anodized for a long-lasting, durable finish

Spherical bearings in mounting points eliminate suspension bind throughout the range of suspension travel

Air pressure adjustments are easily made via a one-touch, wireless remote control and/or a Bluetooth mobile app

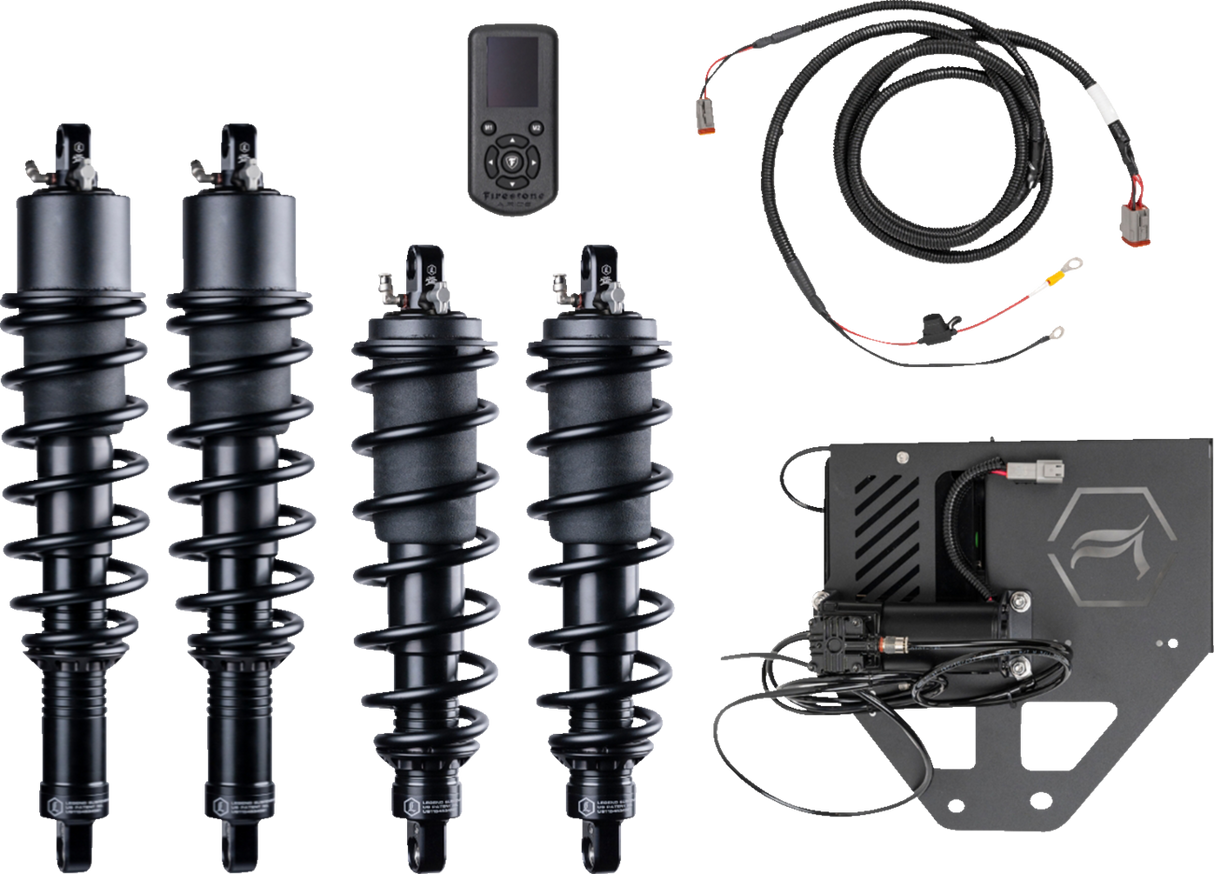

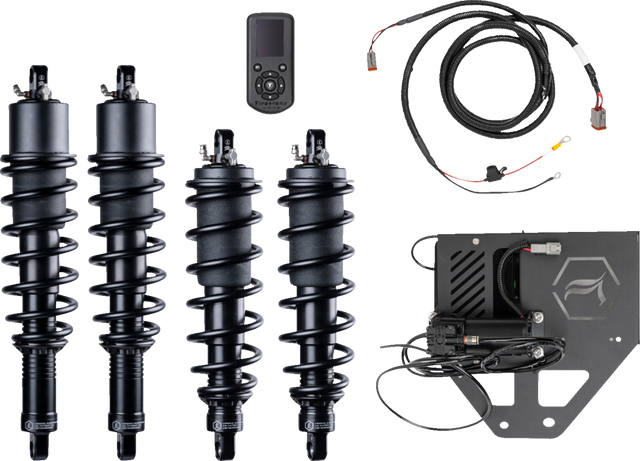

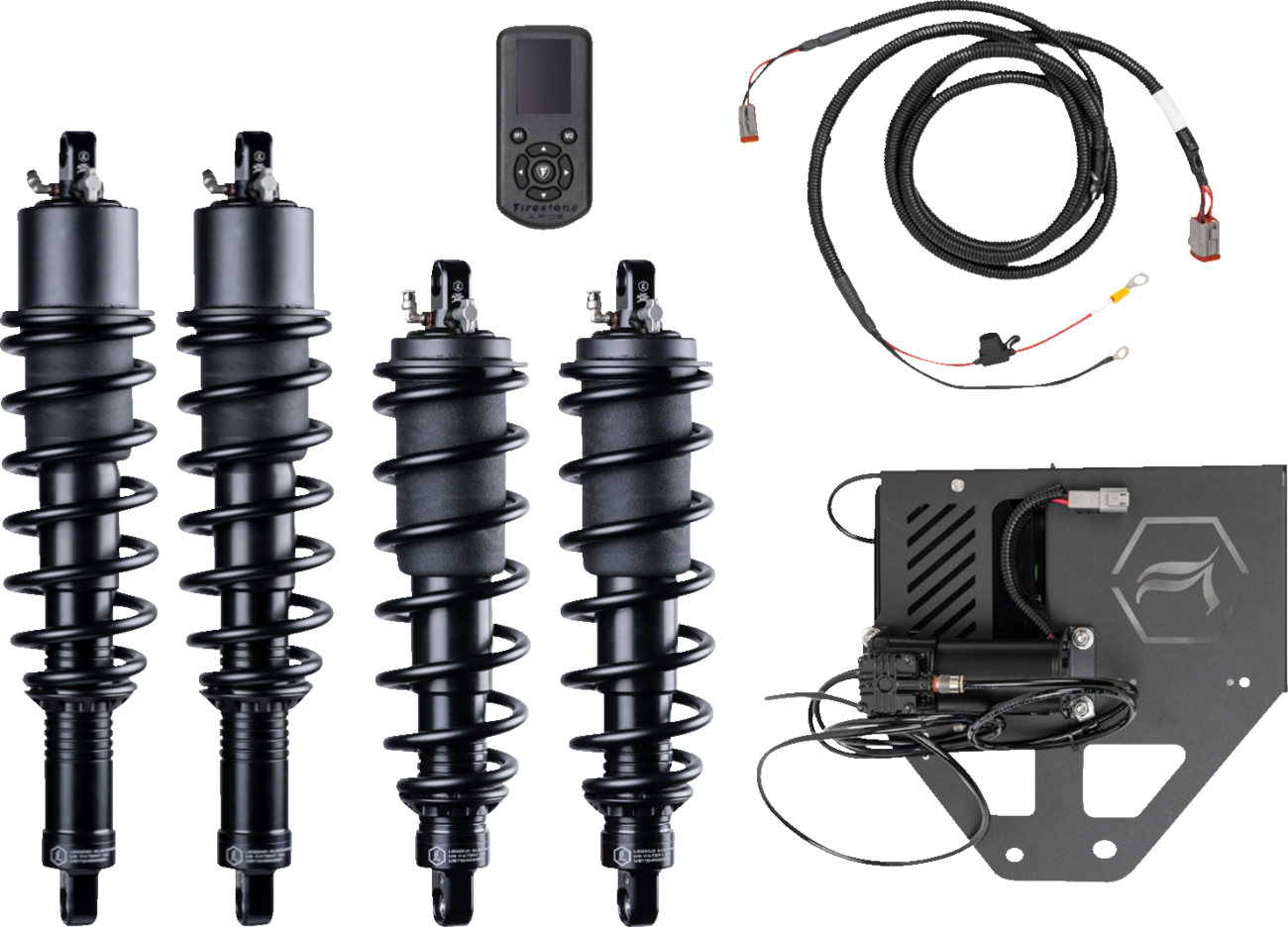

Kit includes four shock assemblies, pre-mounted compressor assembly, remote control, wire harness, airline, and air fittings for easy installation

Assembled in Sturgis, SD U.S.A

Compatible with stock A-arms, not to be used with or as a lift kit.
