PROGRESSIVE SUSPENSION

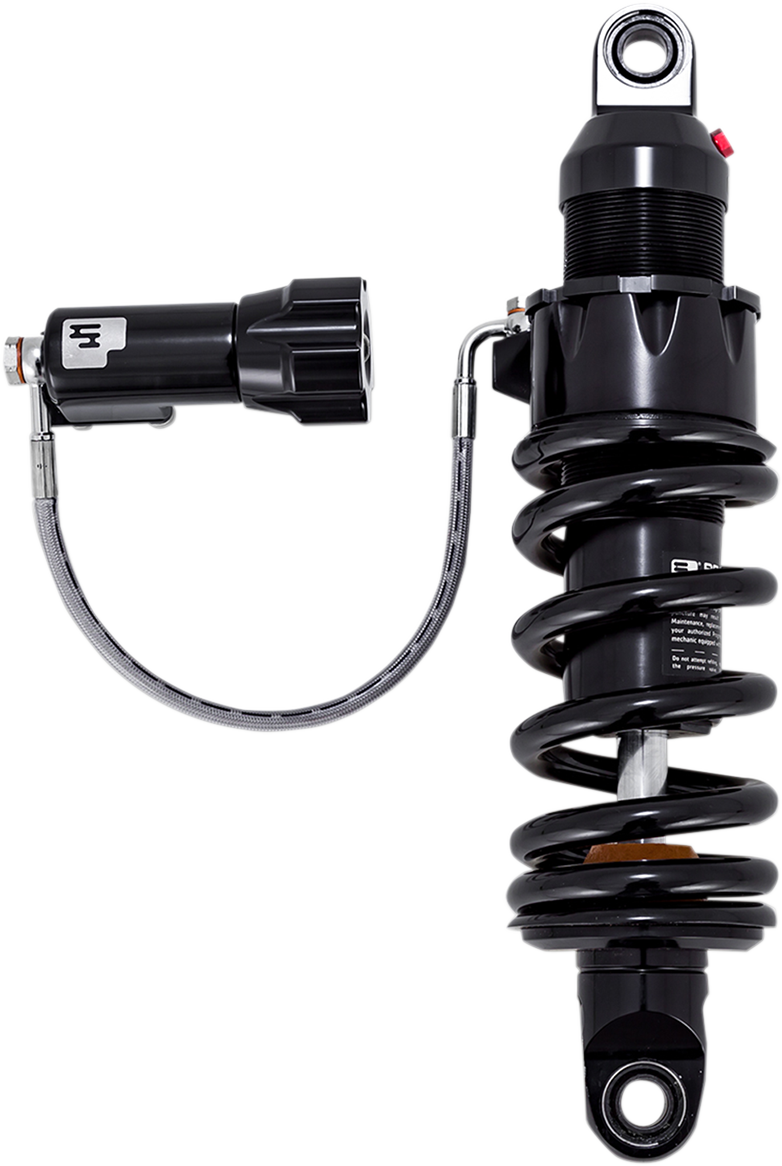

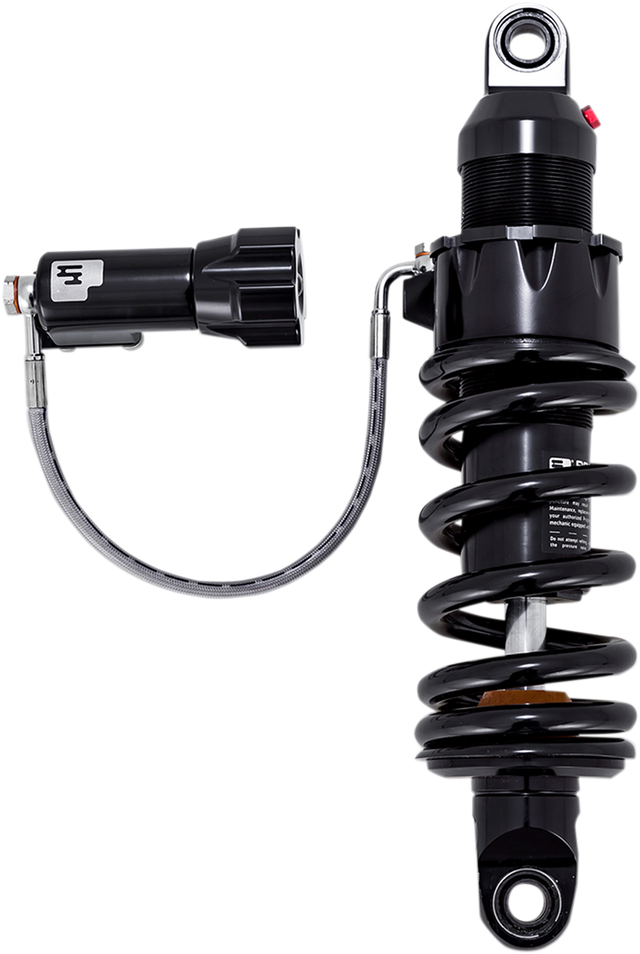

465 Series Shocks with Rap - Black - Standard - 12.2\" 2018 - 2022

SKU: 1310-1756
$1,099.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

High-pressure gas monotube design for ultimate performance

Remote Adjustable Preload (RAP) features a remote hydraulic adjuster to make it even easier to fine-tune your suspension for different loads, such as passengers or luggage

Five-position rebound adjustment to tailor the suspension for changing conditions and riding styles

Hard-anodized aluminum body and components for excellent durability and corrosion resistance

46 mm bore and deflective disc piston provide precise damping

16 mm hard-chrome shaft rides on custom viton seals for low friction and leak-free reliability

Each shock is custom tuned (damping and spring rate) for each fitment

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/ axle to exhaust contact, as well as chain/belt guard or tire contact.

Heavy Duty Applications are recommended for bikes operating at or near the manufacturer’s maximum load rating over 50% of the time.

Specification
Adjustment Type Remote Adjustable Preload
Bore Size 1.81\"
Color/Finish Anodized / Black
Damping Method Gas Charged
Duty Standard
Extended Length 12.20\"
Height Adjustment Lowers 2.00\" / Lowers 1.00\"
Material Aluminum
Model 465 Series
Mounting Position Rear
Product Name Shock Absorber with Remote Adjustable Preload
Reservoir Location Internal
Riding Style Street
Spring Type Single Progressive Rate
Type Coilover Monotube
Units Each

Fitment
MakeModelYear
Harley-DavidsonSoftail Low Rider FXLR2018-2020
Harley-DavidsonSoftail Breakout FXBR2018-2019
Harley-DavidsonSoftail Fat Boy FLFB2018-2019
Harley-DavidsonSoftail Heritage Classic FLHC2018-2019
Harley-DavidsonSoftail Heritage Classic FLHC2021
Harley-DavidsonSoftail Heritage Classic FLHC2020
Harley-DavidsonSoftail Fat Boy 114 FLFBS2018-2022
Harley-DavidsonSoftail Heritage Classic 114 FLHCS2018-2019
Harley-DavidsonSoftail Heritage Classic 114 FLHCS2021
Harley-DavidsonSoftail Heritage Classic 114 FLHCS2020
Harley-DavidsonSoftail Heritage Classic 114 FLHCS2022
Harley-DavidsonSoftail Fat Bob 114 FXFBS2018-2022
Harley-DavidsonSoftail Sport Glide FLSB2018-2019
Harley-DavidsonSoftail Sport Glide FLSB2021
Harley-DavidsonSoftail Sport Glide FLSB2020
Harley-DavidsonSoftail Breakout 114 FXBRS2018-2020

Package Info

PropertyValue
Weight9.4
Height5.08
Length20.76
Width7.04
