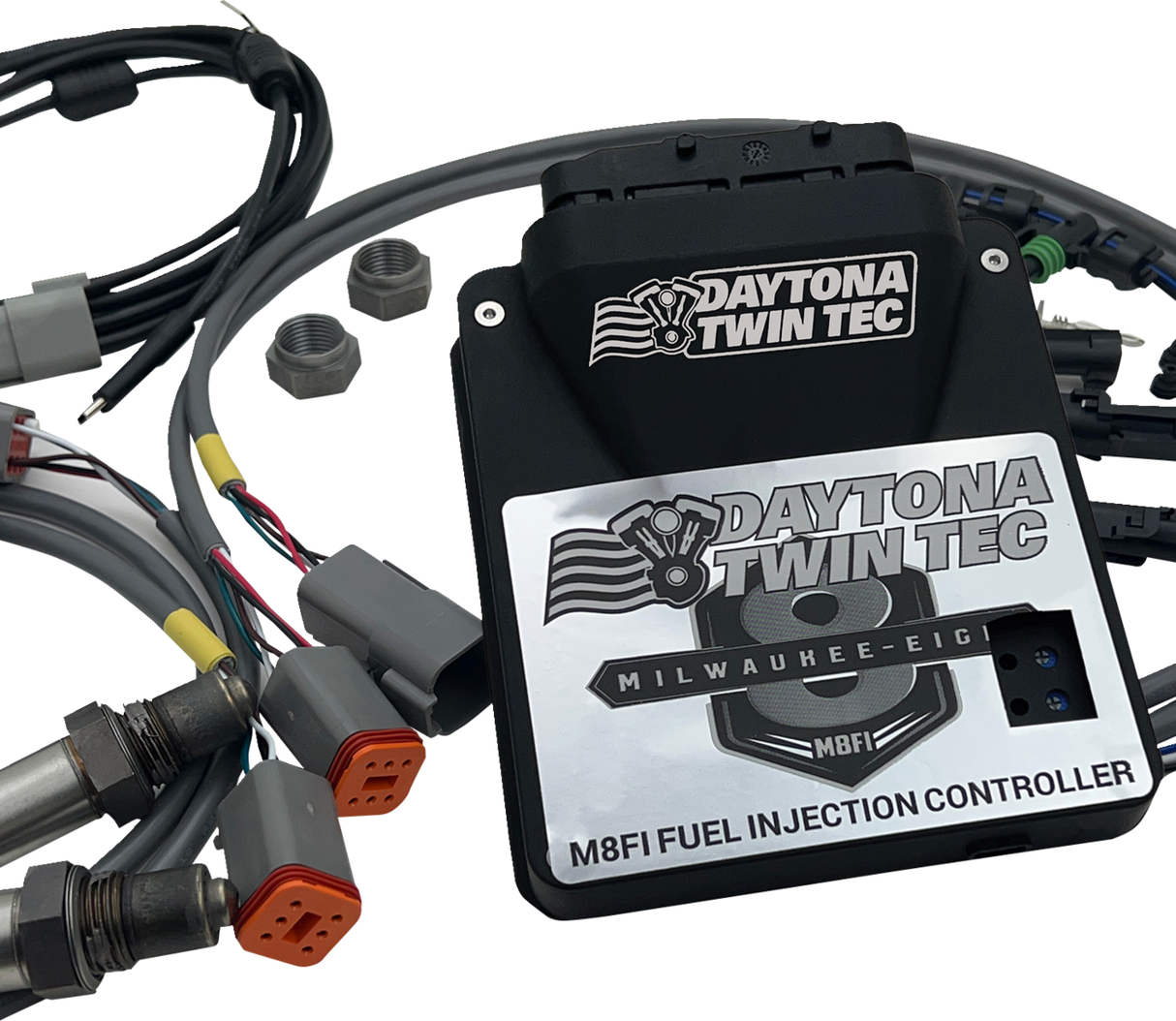

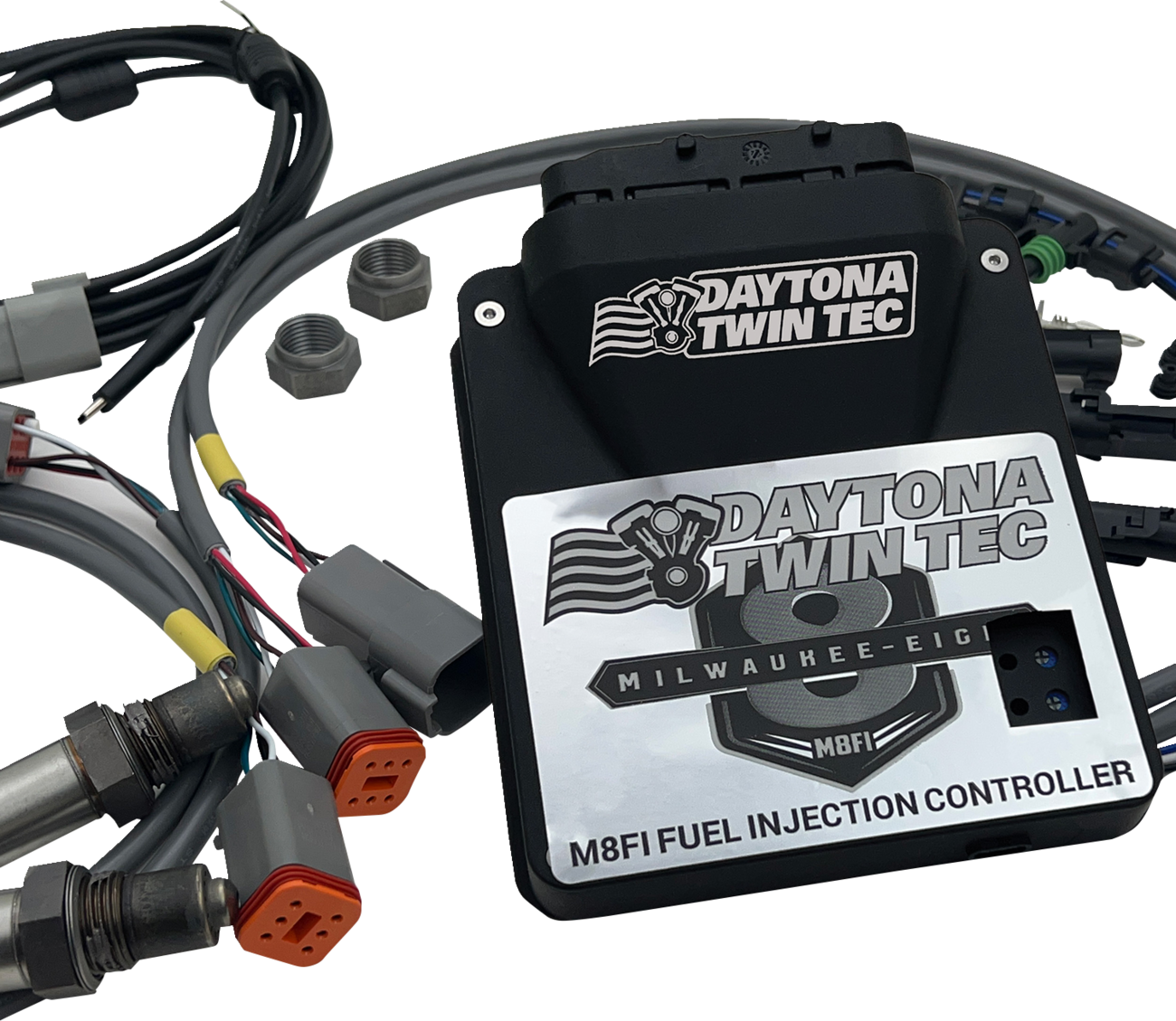

Auto-tune Electronic Fuel Injection Control Module Kit - \'14-\'17 Softail 2014 - 2017

Quickly auto-tune fuel curves for front and rear cylinders on a dyno or on-road with new WEGO IIID dual channel wide-band oxygen sensor interface

Includes wide-band 18 mm oxygen sensors, 18 mm sensor bungs and sensor cables, USB-C cable and USB-C to A adapter, PC Link Software and installation/Tuning Guide

Robust alpha-N (throttle position and rpm-based) fuel control eliminates problems with long duration/high overlap camshafts

Extended data logging and diagnostics

Data flash memory stores full 60 minutes of operating data at 10 samples per second

Programmable user input for functions such as two-stage rpm limiter, nitrous retard and shift kill

Programmable user output for functions such as shift light, nitrous activation and electric shifter

Powerful Windows software for custom programming and data analysis

Billet aluminum housing with a black anodized finish

Fully programmable plug-in replacement

Easy plug-in-play installation

Made in the USA

Does not work on models with VVT (variable valve timing).

Some aftermarket exhaust systems may require modifications or relocation of their O2 sensor port bungs to avoid clearance issues.

ECM kits are race only and require a qualified technician to install.
