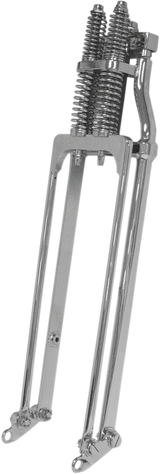

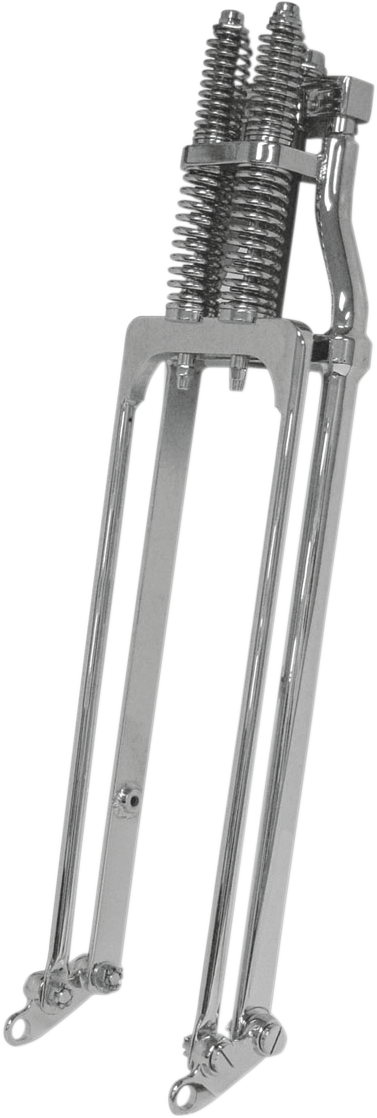

Springer Forks - Chrome - Standard Length 1985 - 2017

Economical alternative to a shock dampened-type Springer

Fully assembled with an in-line top bracket without a built-in rake

The standard length Springer (31\" measured from top bearing to the axle) is comparable to a standard-length FXST front end

1\" O.D. steering stem designed for Timken® type bearings

Both rear legs are threaded for right or left brakes

The 3/4\" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

Measures 9-1/4\" between Rockers

Riser mounts are on 4-3/4\" centers and threaded 1/2\"-20

Requires wheel compatible with 3/4\" O.D. axle

These Springers are measured from the bottom of the top tree to the center of the axle

Springers do not accept spotlight bars; no fender mounts.
