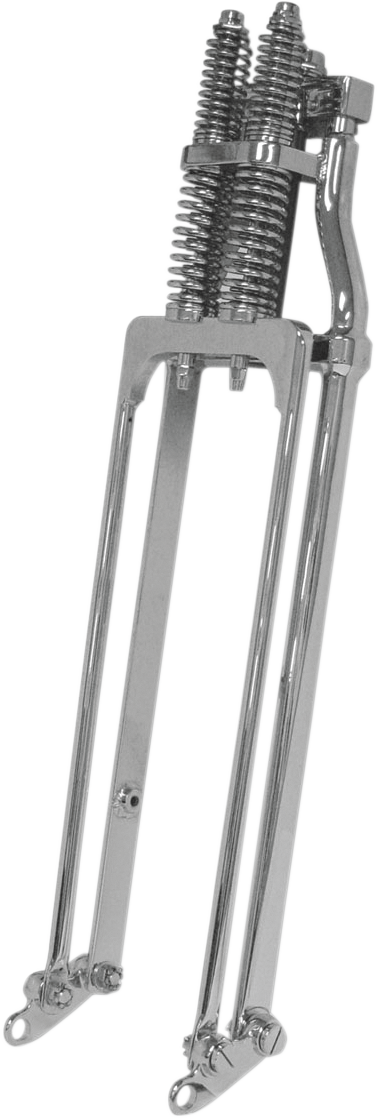

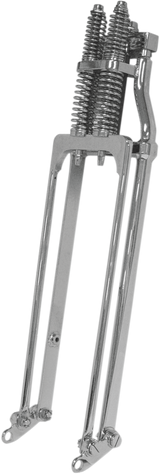

Springer Forks - Chrome - Extends +6\" 1985 - 2017

Economical alternative to a shock dampened-type springer

Fully assembled with an in-line top bracket without a built-in rake

These +6\" length Springers measure 37\" from top bearing to the axle

1\" OD steering stem designed for Timken® type bearings

Both rear legs are threaded for right or left brakes

The 3/4\" OD axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

Measures 9-1/4\" between Rockers

Riser mounts are on 4-3/4\" centers and threaded 1/2\"-20

Requires wheel compatible with 3/4\" OD axle

These Springers are measured from the bottom of the top tree to the center of the axle

Do not accept spotlight bars; no fender mounts.
