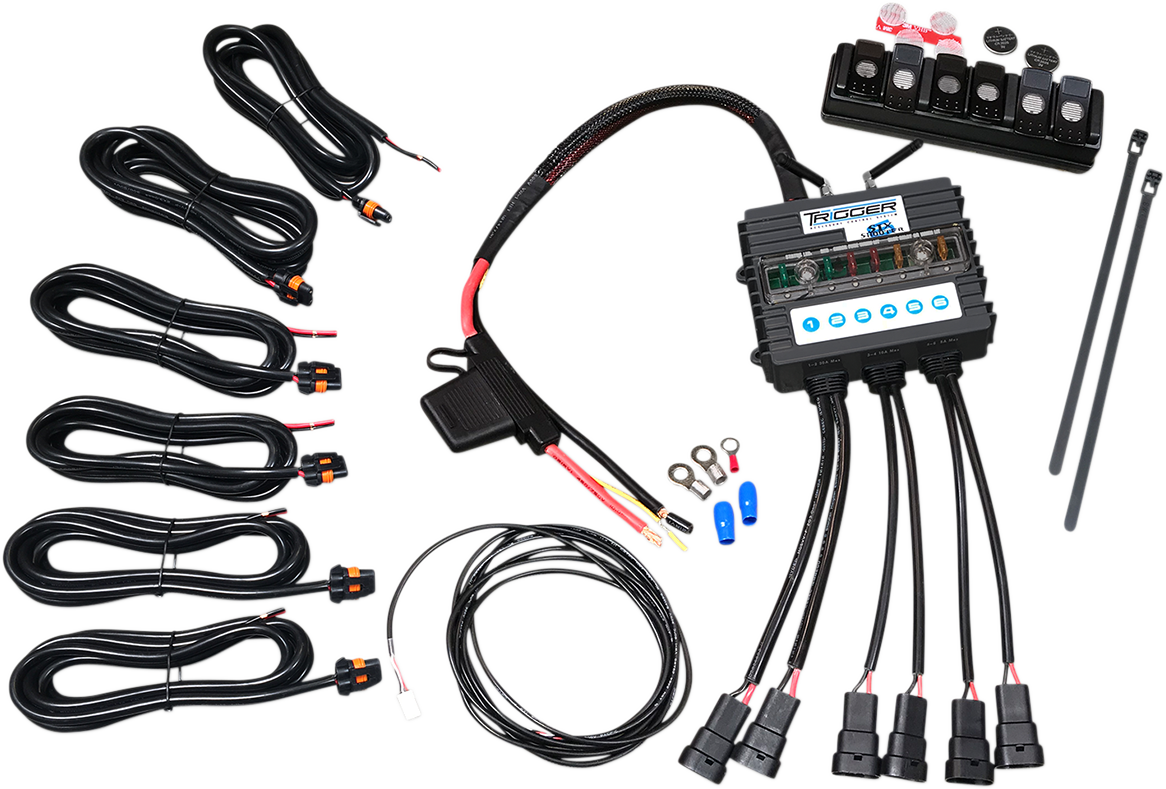

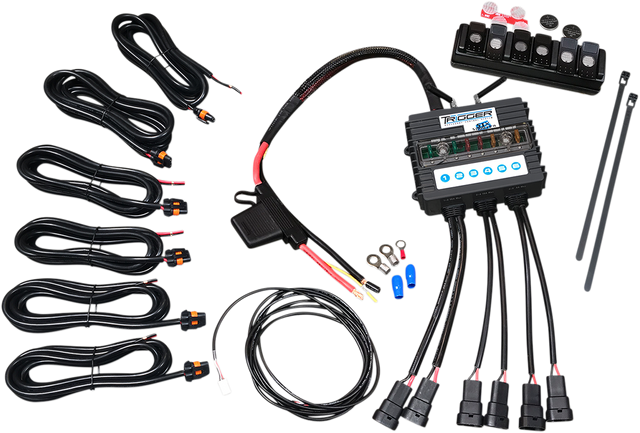

Trigger Six-Shooter Controller

Control box:

6 channels, 2 x 30 amp circuits, 2 x 10 amp circuits, 2 x 5 amp circuits, All Solid State, 12-24 volt

RF Remote switch pad usable inside or outside the vehicle

Bluetooth control from phone/tablet app

Manual buttons for on/off on top of case

DIN connector built in for manual control with conventional toggle switches (harness sold separately)

Low voltage cutout to shut down Trigger if battery voltage gets low

100 amp fuse installed on positive input wire for protection

12 to 24 volt out with waterproof connectors

Fuse’s built in, waterproof cover (30 amp - 1 and 2, 10 amp - 3 and 4, 5 amp - 5 and 6)

LED’s to indicate relay on and if fuse is blown, blue for circuit on, red for blown fuse

Waterproof case design, withstands temps to 250 deg. F and -20 deg. F below freezing

12 to 24 volt input, 3 wires, ground, switched positive, battery positive

RF Remote:

2.4 ghz frequency hopping RF connection to control box

Replaceable battery power and/or 12 volt hardwired option for backlit switches

Back lit with press of button, delayed off for the back light. If hardwired, provides a color changing option adjustable from App

Back lights stay lit when vehicle lights are on

Custom switch labels included

Weatherproof design

App Control:

Apps for both Android and iOS with simple interface for turning on and off the 6 channels

Allows customized names for each channel

Battery voltage shows in App screen

Controls backlight color in the RF switch pad

App allows for dimming and strobe functions in addition to ON/OFF

Harnesses:

Kit includes six 8’ wire harnesses with the mating connector to the control box on one end and blank wires on the other; Two 12 gauge, two 14 gauge, two 18 gauge
