CUSTOM DYNAMICS

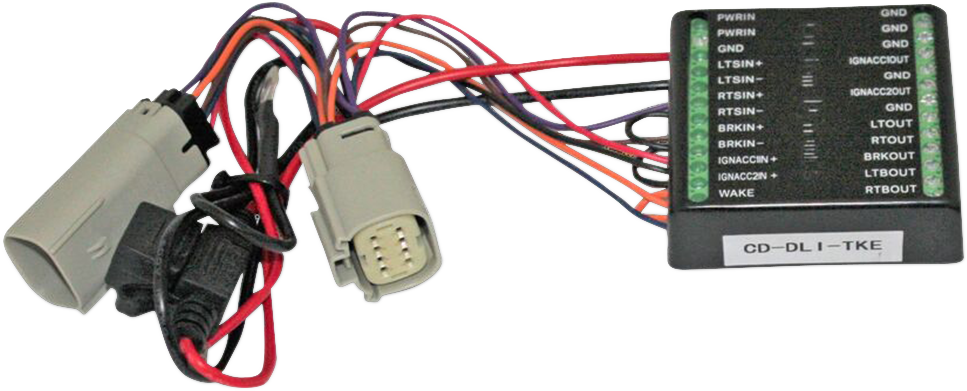

Load Isolator Module 2014 - 2023

SKU: 2050-0300
$119.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

Allows you to connect aftermarket electrical and lighting accessories with total confidence

Completely isolates the accessories from the vehicle’s main wire-harness without adding any additional load to the system

A must-have on newer BCM/VCM/CAN bikes that have very sensitive electrical systems that do not allow the addition of electrical or lighting accessories

Has an built in integrator function which combines brake and turn onto one wire, giving turn priority over brake which is very useful for adding Run-Brake-Turn function to a 3 wire LED (low-high-ground)

There is also a built in trailer out which can be connected to an optional 4 pin trailer harness (sold separately) given you complete and total confidence of a 100% isolated trailer connector from the vehicle

Total Isolation of all lighting and electrical accessories from vehicle

Left Turn, Right Turn, Brake, Battery, Accessory Power Inputs

Isolated Outputs: Left Turn, Right Turn, Brake, Run/Accessory

Isolated Integrated Output: Turn/Brake Output

Plug and Play (except for universal version)

45 Amp Max Total Capacity

Specification
Connector Style TKE
Product Name Isolator Module
Riding Style Street
Type Model Specific
Units Kit

Fitment
MakeModelYear
Harley-DavidsonFreewheeler FLRT2021
Harley-DavidsonFreewheeler FLRT2019
Harley-DavidsonFreewheeler FLRT2018
Harley-DavidsonFreewheeler FLRT2015
Harley-DavidsonFreewheeler FLRT2017
Harley-DavidsonFreewheeler FLRT2016
Harley-DavidsonFreewheeler FLRT2020
Harley-DavidsonFreewheeler FLRT2022-2023
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2021
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2019
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2014
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2018
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2017
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2015-2016
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2020
Harley-DavidsonTri Glide Ultra Classic FLHTCUTG2022-2023
Harley-DavidsonRoad Glide 3 FLTRT2023

Package Info

PropertyValue
Weight0.4
Height1.1
Length9.5
Width5.1

CUSTOM DYNAMICS

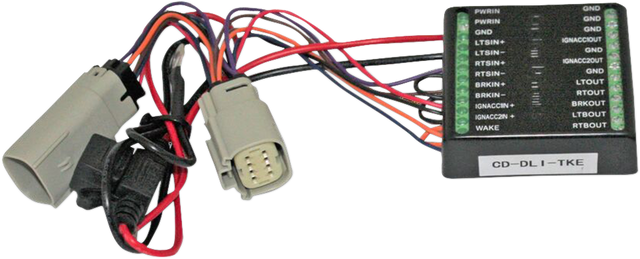

Load Isolator Module 2014 - 2023
