Camchest Kit - 487 - Chain Drive - Oil Cooled - Race Series® Lifters - M8 2017 - 2025

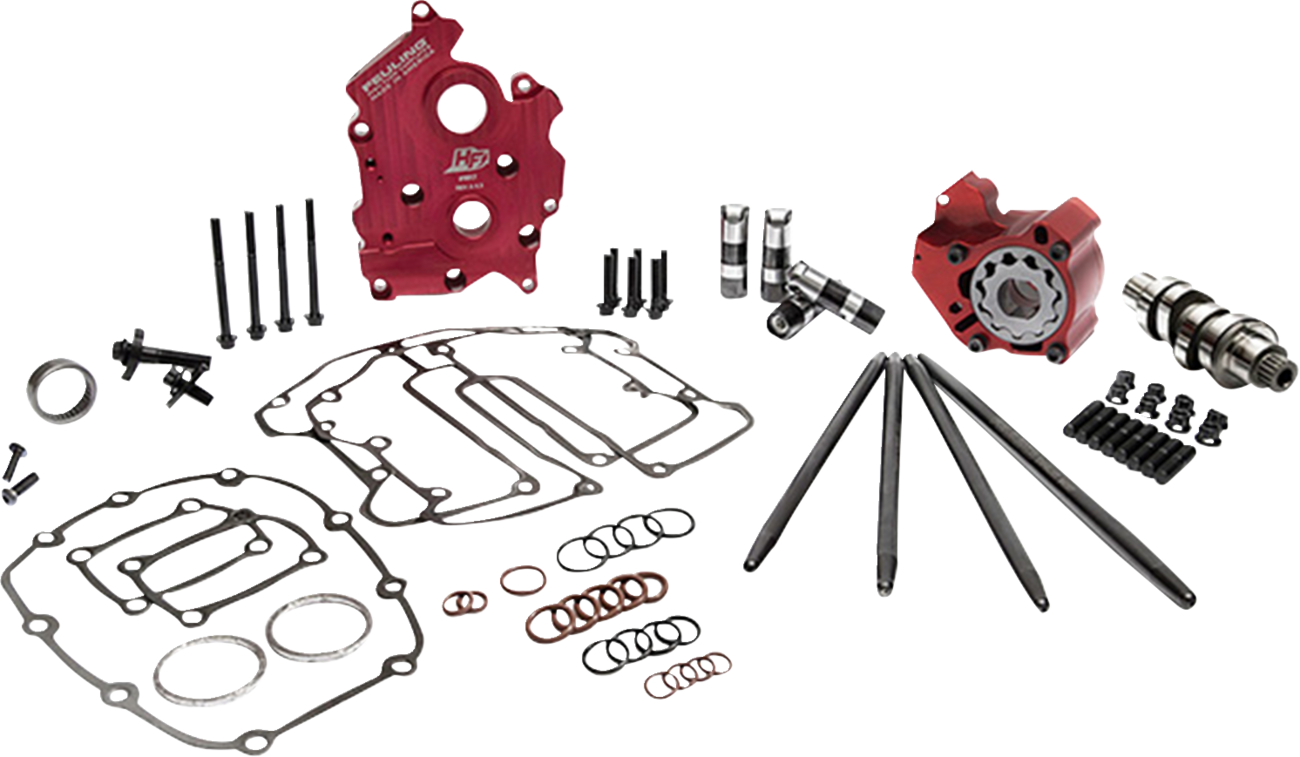

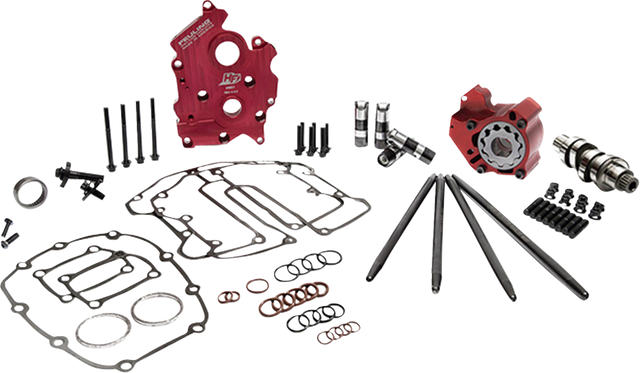

487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit

487 Reaper Camshaft

Chain Drive

38° overlap

RPM range 2,250 - 6,100

Camshaft for 114\" and 117\" engine

Responds very well to increased bore and or compression

Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock

Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

Cam Installation Kit

Includes cam bearing, cam/crank hardware and gasket/O-ring kit

Race Series® Lifters

Full-travel hydraulic lifters made from machined steel designed with 0.200\" of travel

One Piece Pushrod

HP+ heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish

Race Series® Oil Pump

High flow 2.250 Chrome Moly gerotor gears

27% more pressure and scavenge gear volume over stock

42% more scavenge volume with matched passages, port sizing and holes to the engine case

46% more oil volume to the crankshaft and connecting rod bearing

15°- 25° cooler engine temperatures

15°- 30° cooler oil temperatures

10-30 more PSI of oil pressure

Reduces wet sumping, blow by and oily air cleaners

Magnets to help protect gears and pressure relief valve

FEULING test results show a 50% reduction of engine sump oil level.

High Flow Camplate

Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved

Made in the USA

Feuling does not recommend tuning beyond stock emissions standards.
