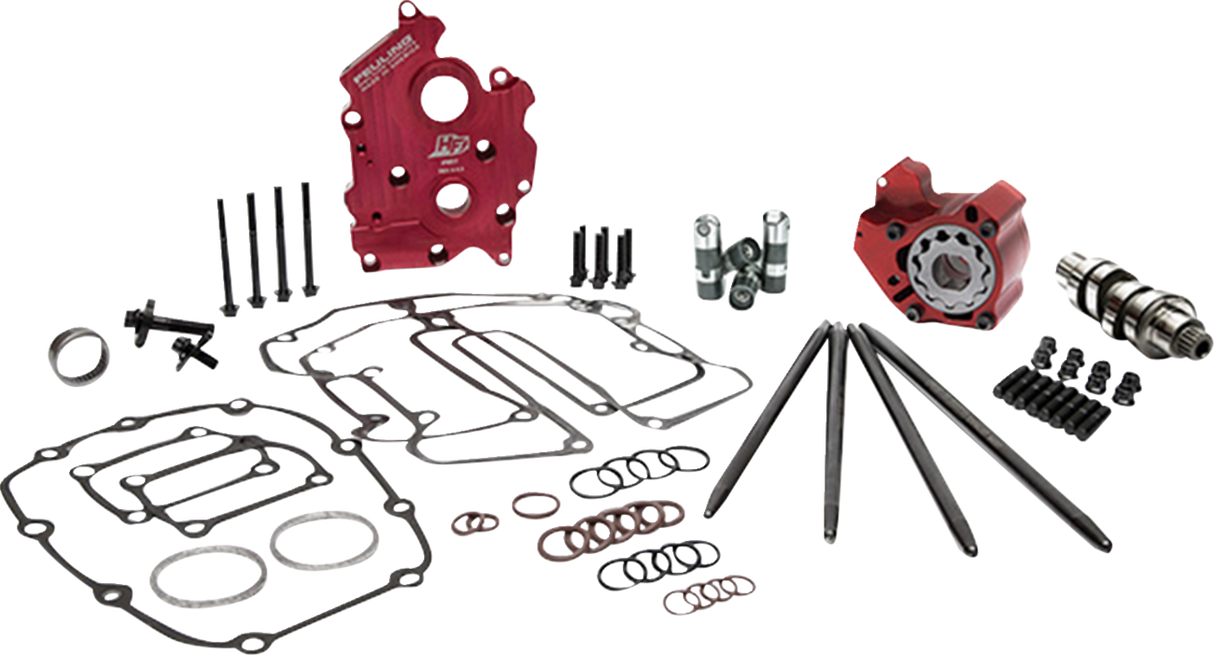

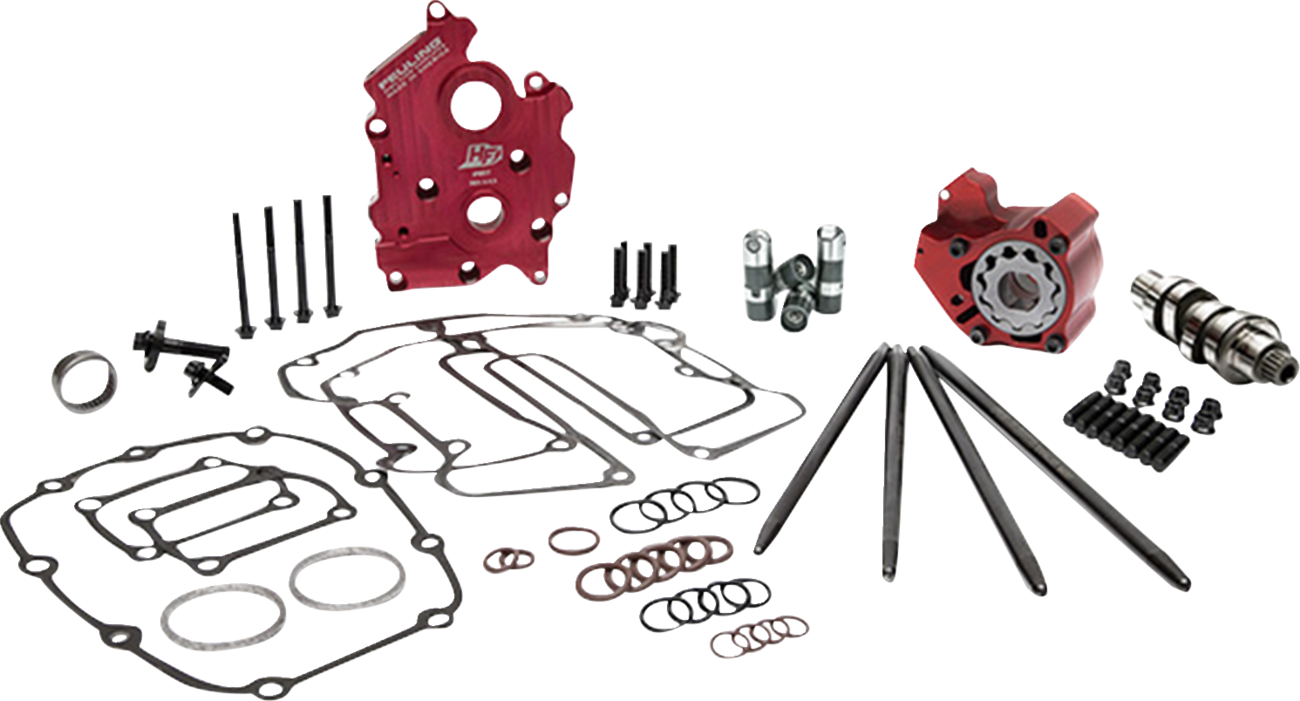

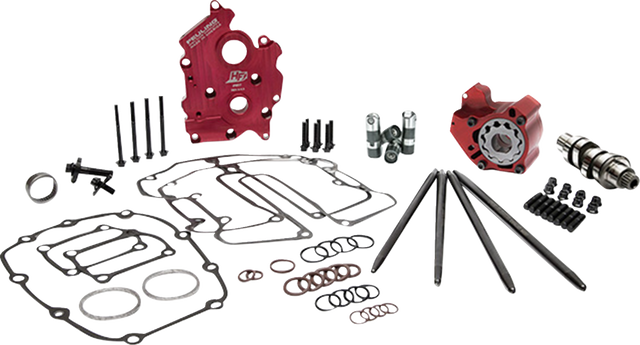

Camchest Kit - 487 - Center/Water Cooled - Race Series Short Travel Lifters - M8 2017 - 2025

487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit

487 Reaper Camshaft

Bolt-in

Chain Drive

Camshaft for 114\" and 117\" engine

Responds very well to increased bore and or compression

Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock

RPM range 2,250 - 6,100

38° overlap

Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.

Cam Installation Kit

Includes cam bearing, cam/crank hardware and gasket/O-ring kit

Race Series® Short Travel Lifters

Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)

Designed with 0.115 of total travel

One Piece Pushrod

HP+ 0.165 wall, +0.040 longer

Heavy duty 7/16\" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish

Race Series® Oil Pump

Increase oil pressure, scavenge volume and engine oil flow

30% more pressure gear volume over stock

53% more scavenge gear volume over stock

42% more scavenge volume with port sizing, matched passages and holes to the engine case

46% more oil volume to the crankshaft and connecting rod bearing

15°- 25° cooler engine temperatures

15°- 30° cooler oil temperatures

10-30 more PSI of oil pressure

Reduces wet sumping, blow by and oily air cleaners

Magnets in oil pump to help protect gears and pressure relief valve

Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.

FEULING test results show a 50% reduction of engine sump oil level.

High Flow Camplate

Bolts into stock location

Billet 7075 aluminum

Made in the USA

Feuling does not recommend tuning beyond stock emissions standards.
