Cam Kit - 487 - Chain Drive - Race Series Lifters - M8 2017 - 2025

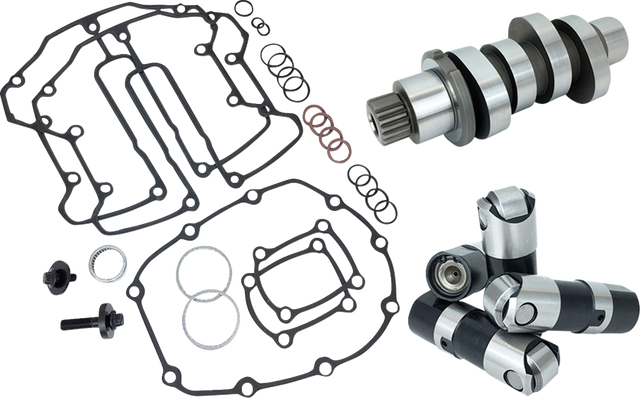

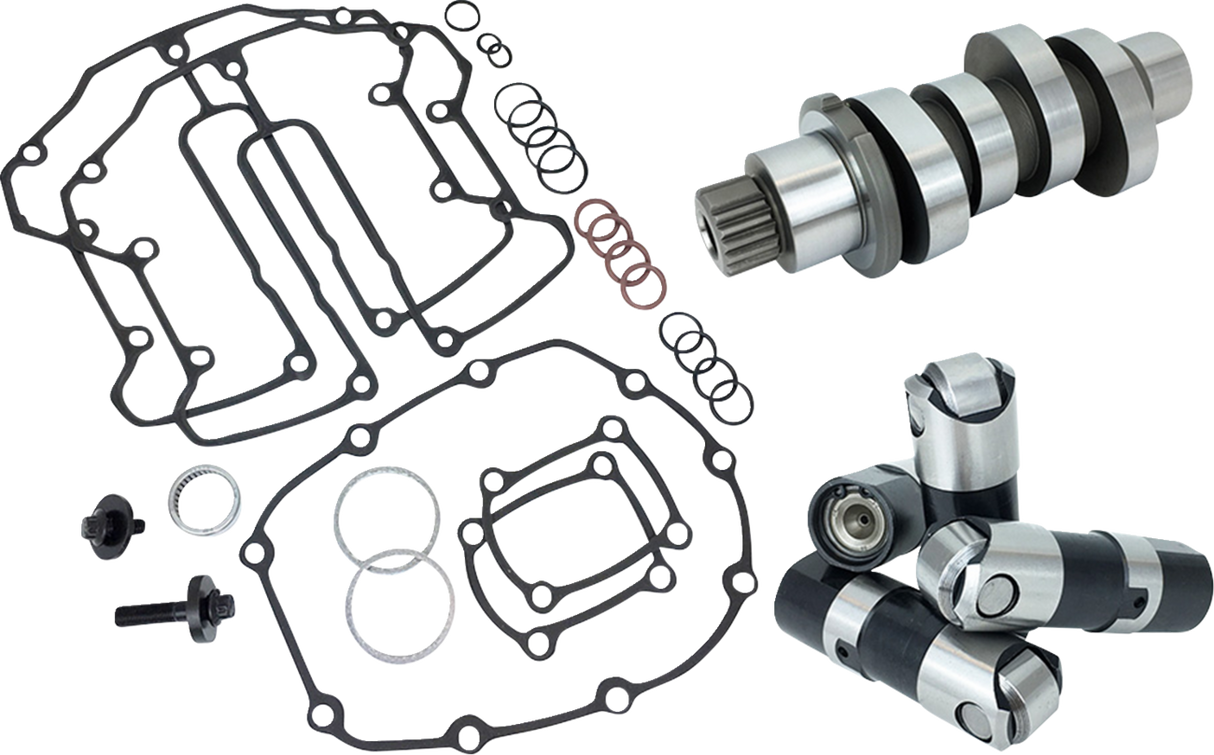

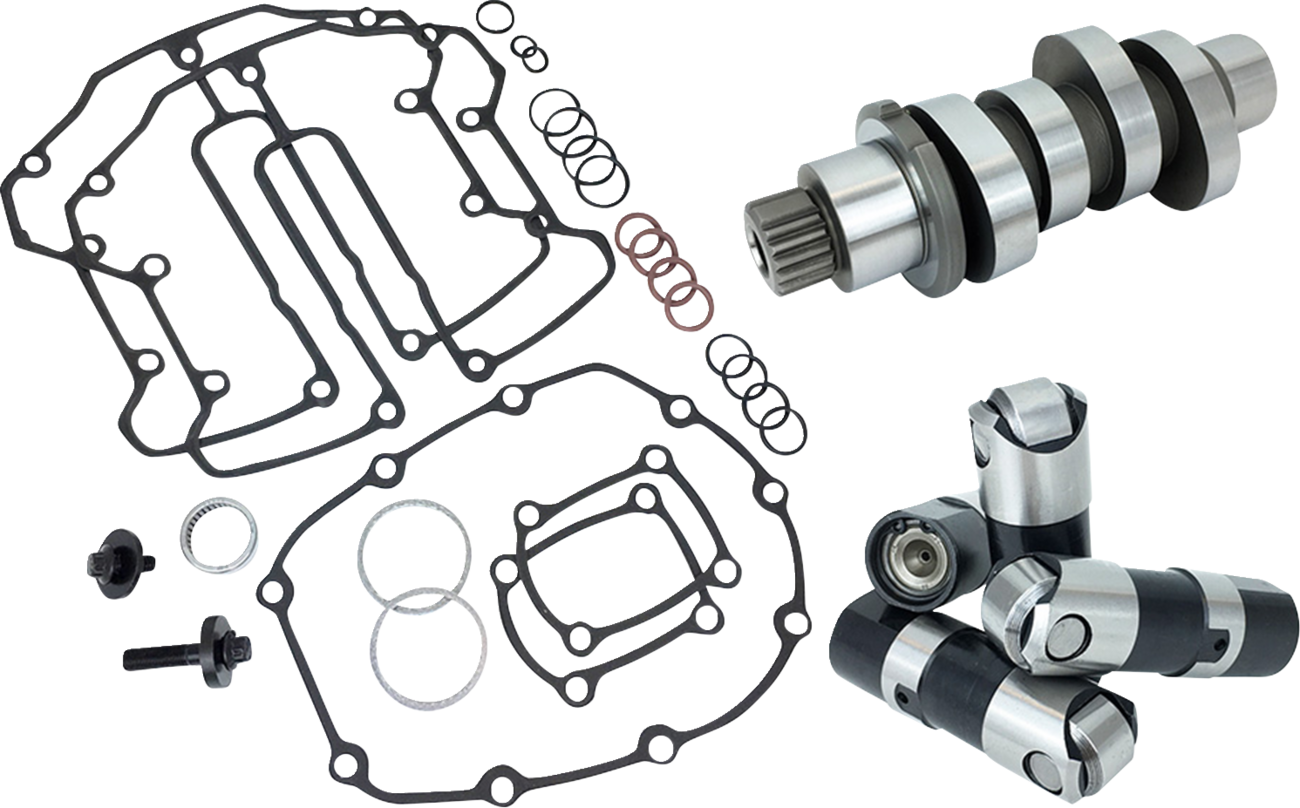

487 Reaper Chain Drive Camshaft, Cam Installation Kit and Race Series Lifters are included in this kit

487 Reaper Camshaft

Bolt in

Chain Drive

38° overlap

RPM range 2,250 - 6,1000

Camshaft for 114\" and 117\" engine

Responds very well to increased bore and or compression

Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock

Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio.

Cam Installation Kit

Includes cam bearing, cam/crank hardware and gasket/O-ring kit

Allows for installation of the factory one piece pushrods or optional Feuling® heavy duty HP+® 0.165 wall one piece pushrods

Race Series lifters

Hydraulic lifters have a full 0.200 of total travel

Designed with a slower bleed down rate to handle heavy valve spring pressures

Increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange

Made in the USA

Heavy duty one piece pushrods are highly recommended.

Feuling® fastener kit is recommended to help prevent cylinder head cracking.

A high flow exhaust system and air cleaner is highly recommended for optimal performance.

High Lift valve springs are required on stock cylinder heads, Screamin Eagle cylinder heads have high lift valve springs but will need to be verified.

Feuling® does not recommend tuning beyond stock emissions standards.
