S&S CYCLE

Piston Kit - 1250cc Big Bore - XL 2009 - 2021

SKU: 0910-3554
$549.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

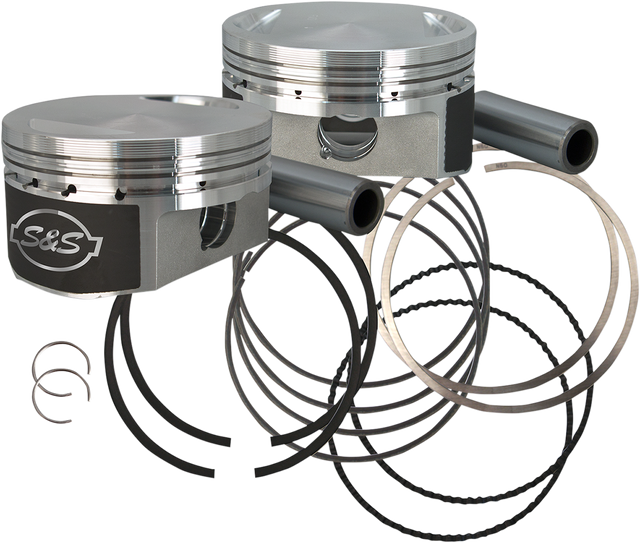

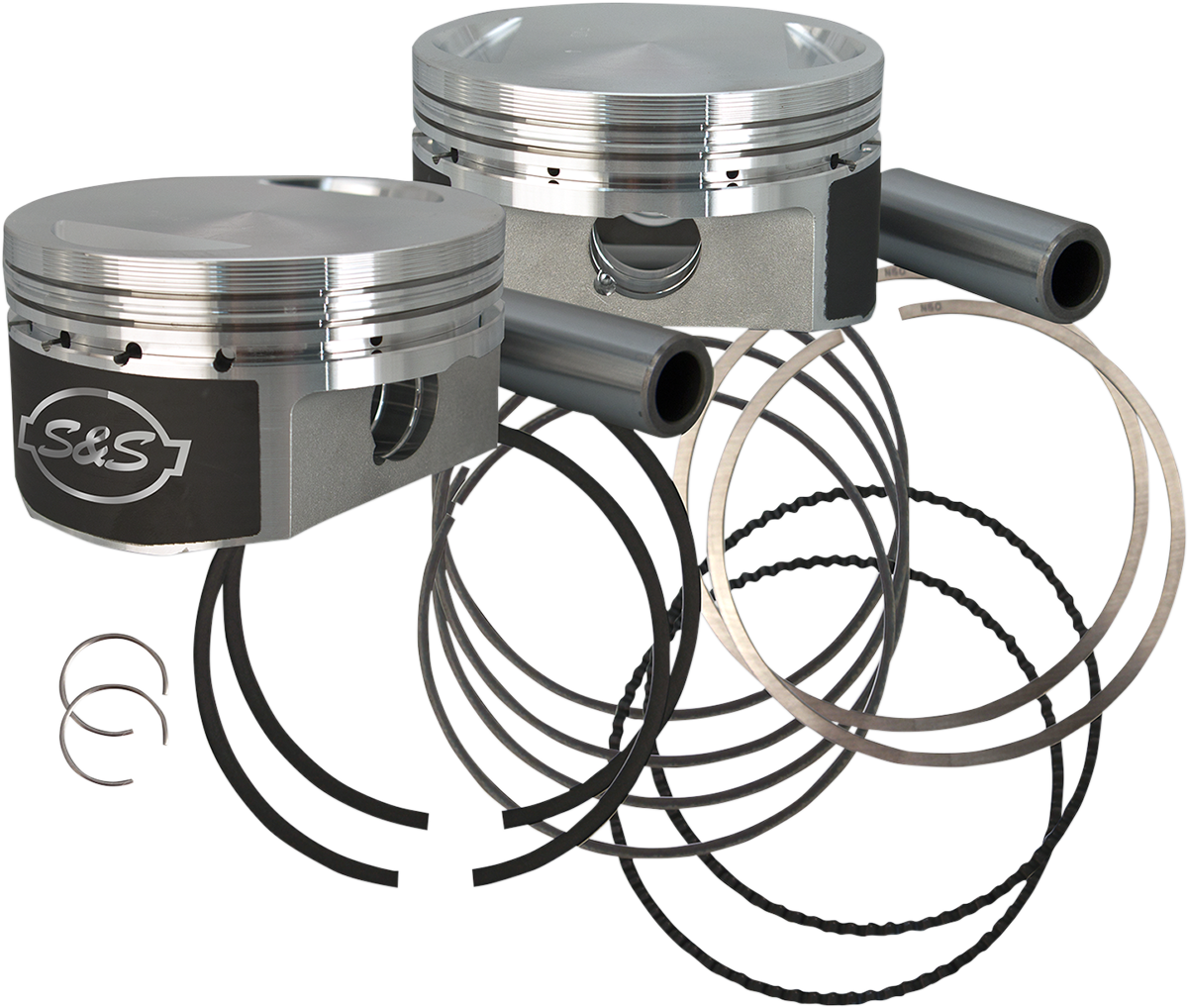

Piston kit includes forged pistons, rings, wrist pin and clips for a complete motor

Deck height is 1.207\"

Made in the U.S.A.

This kit is not compatible with XR1200 or \'21 Sportster S/RH1250S models.

Specification
Bore Size 3.5625\"
Compression Ratio 10.3:1
Displacement 1250 cc
Piston Head Shape Flat Top
Piston Material Forged / Aluminum
Product Name Piston Kit
Riding Style Street
Stroke Length 3-13 / 16\"
Style Big Bore
Units Kit

Fitment
MakeModelYear
Harley-DavidsonIron 1200 XLNS2020
Harley-DavidsonIron 1200 XLNS2019
Harley-DavidsonIron 1200 XLNS2018
Harley-DavidsonIron 1200 XLNS2021
Harley-Davidson1200 Roadster XLCX2020
Harley-Davidson1200 Roadster XLCX2018
Harley-Davidson1200 Roadster XLCX2016
Harley-Davidson1200 Roadster XLCX2019
Harley-Davidson1200 Roadster XLCX2017
Harley-DavidsonForty-Eight XLX2020
Harley-DavidsonForty-Eight XLX2010-2011
Harley-DavidsonForty-Eight XLX2015
Harley-DavidsonForty-Eight XLX2017
Harley-DavidsonForty-Eight XLX2013-2014
Harley-DavidsonForty-Eight XLX2019
Harley-DavidsonForty-Eight XLX2018
Harley-DavidsonForty-Eight XLX2016
Harley-DavidsonForty-Eight XLX2012
Harley-DavidsonIron 883 XLN2020
Harley-DavidsonIron 883 XLN2011
Harley-DavidsonIron 883 XLN2014
Harley-DavidsonIron 883 XLN2013
Harley-DavidsonIron 883 XLN2019
Harley-DavidsonIron 883 XLN2010
Harley-DavidsonIron 883 XLN2017
Harley-DavidsonIron 883 XLN2012
Harley-DavidsonIron 883 XLN2009
Harley-DavidsonIron 883 XLN2015-2016
Harley-DavidsonIron 883 XLN2018

Package Info

PropertyValue
Weight2.45
Height4.8
Length8.7
Width4.8
