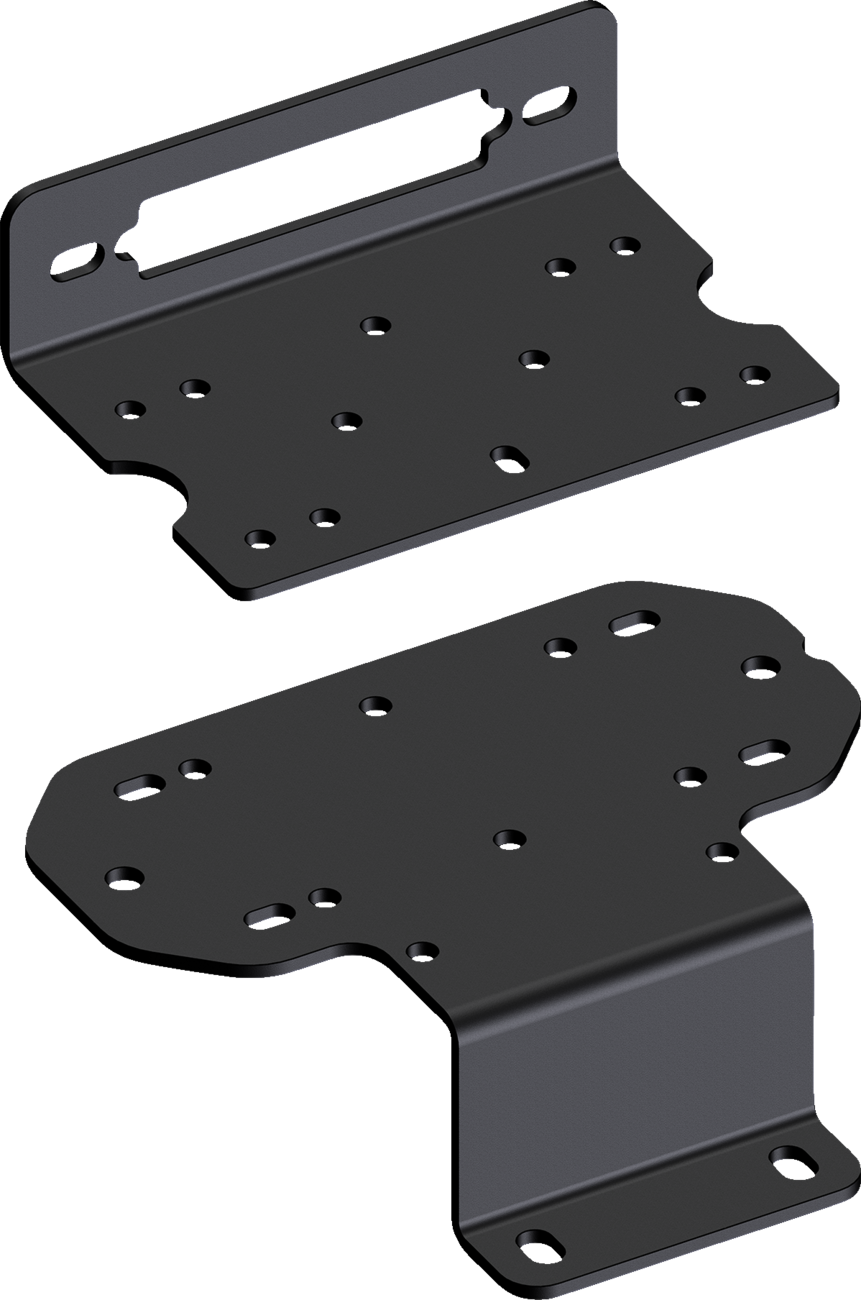

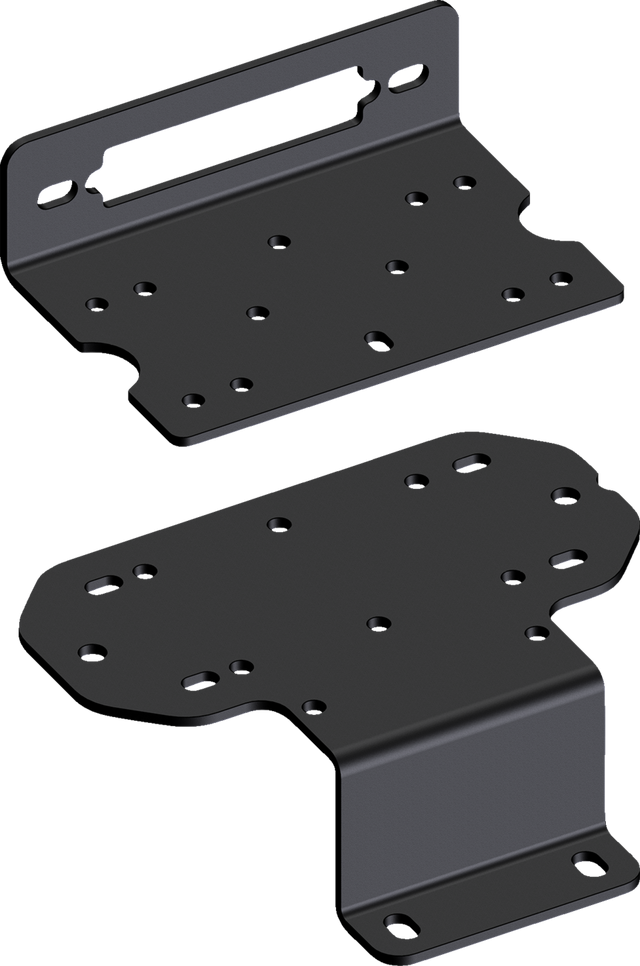

Winch Mount - Yamaha Rhino 2003 - 2013
SKU: 4505-1009Select a vehicle to ensure fitment.
Winch Mount - Yamaha Rhino 2003 - 2013 is backordered and will ship as soon as it is back in stock.
Free shipping over $50!
Free shipping over $50!
free shipping to all orders over $50 to USA 48 states only.
Check if you qualify for the GIVE-AWAY !
Check if you qualify for the GIVE-AWAY !
On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More
USA based customer service
USA based customer service
Call : 551-341-9472
PRODUCT DETAILS
Description
Description
Constructed of 3/16\" steel
Metal bead blasted and powder coated for the best possible finish prep and durability
Very easy to install
Complete installation instructions and mounting hardware included
100% made in the USA
Roller fairlead and winch not included.
Designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
WARN: Vantage 2000-3000 lb (will NOT work with Vantage 4000 due to motor lead orientation)
WARN: ProVantage 2500-4500 lb (ProVantage 3500 and 4500 will require lead rotation)
WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: LT2000 / UT3000 / Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND 2-hole winches: 68146 / 61258 / 61297 / 61840
BADLAND standard winches: 68145 / 61604 / 61257 / 61383
BADLAND WIDE winches: 61384 / 68144 / 61605
CHAMPION 2-hole winches: 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
CHAMPION standard winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
CHAMPION WIDE winches: 14008 / 14501 / 14551 / 14552 / 40252
CHAMPION: 14001 and 14061 / 14051 / 14560
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000 requires roller fairlead with a 4.875\" bolt pattern
SMITTYBILT: XRC 2.0 requires roller fairlead with a 4.875\" bolt pattern
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000 4-hole standard (3.00\" x 4.875\" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00\" x 4.875\" or 3.00\" x 6.600\" bolt pattern mount-up
QUADBOSS: RP25 / RP35
Traveller: 1078311
Traveller: 1078088 / 1078302 require roller fairlead with a 4.875\" bolt pattern
Possibly many others with standard mounting pattern of 4-hole 3.00\" x 4.875\" bolt pattern with rollers that are 4.875\" bolt pattern, 4-hole wide 3.00\" x 6.60\" bolt pattern, or 2-hole 3.10” with rollers that are 4.875” bolt pattern
Specification
Specification
Fitment
Fitment
| Make | Model | Year |
|---|---|---|
| Yamaha | YXR 450F Rhino 4x4 | 2006-2011 |
| Yamaha | YXR 660F Rhino 4x4 | 2003-2007 |
| Yamaha | YXR 700FI Rhino 4x4 | 2008-2013 |
Package Info
Package Info
| Property | Value |
|---|---|
| Weight | 7.5 |
| Height | 4.5 |
| Length | 10 |
| Width | 8.5 |
