Winch Mount - Polaris 2005 - 2010
SKU: 4505-1017Select a vehicle to ensure fitment.
Winch Mount - Polaris 2005 - 2010 is backordered and will ship as soon as it is back in stock.
Free shipping over $50!
Free shipping over $50!
free shipping to all orders over $50 to USA 48 states only.
Check if you qualify for the GIVE-AWAY !
Check if you qualify for the GIVE-AWAY !
On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More
USA based customer service
USA based customer service
Call : 551-341-9472
PRODUCT DETAILS
Description
Description

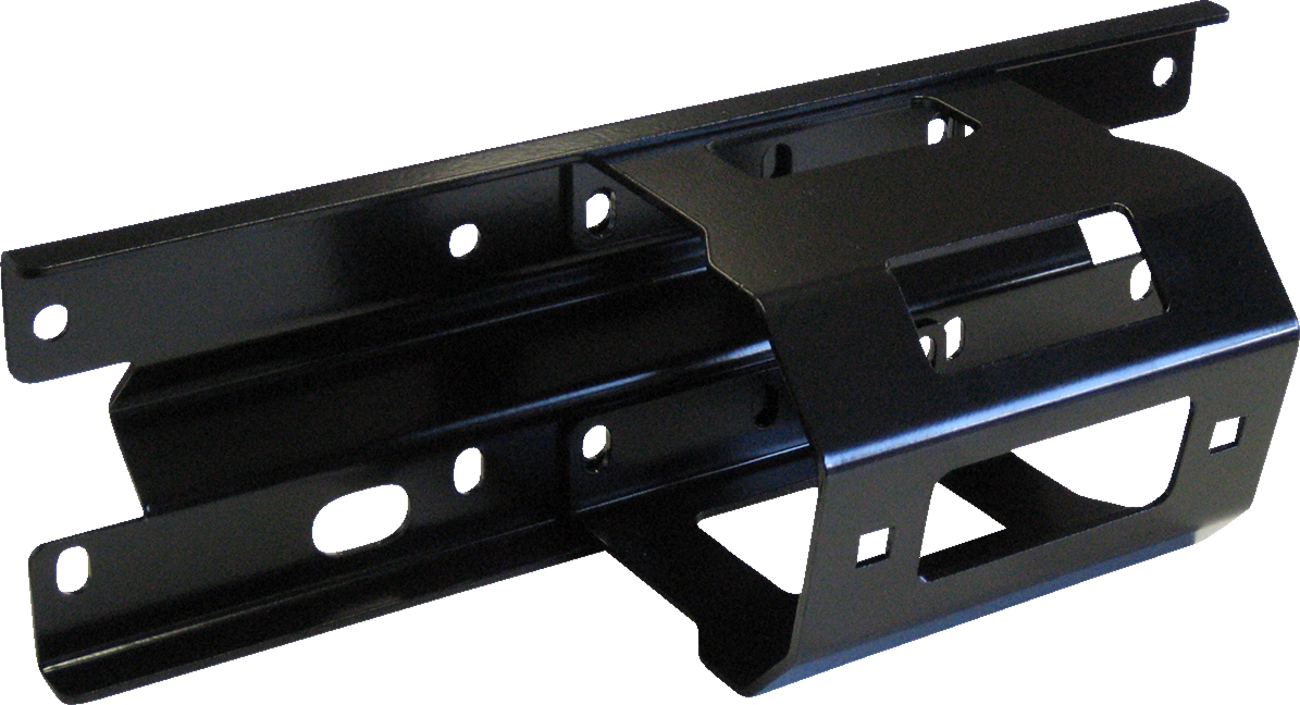

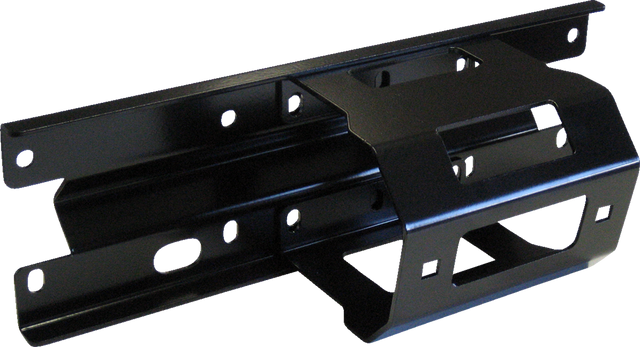

Constructed of 10 gauge, grade 50 steel
Designed to fit between the headlights
Metal bead blasted and powder coated for the best possible finish prep and durability
Mounts the same as OEM intended
Includes bumper access cover cut-out patterns
Works with all Polaris OEM brush guards and double tube bumpers
Very easy to install
Complete installation instructions and mounting hardware included
100% made in the USA
Roller fairlead and winch not included.
Designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 (requires purchase of #4505-0952)
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR)
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT requires roller fairlead with a 4.875\" bolt pattern
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND, CHAMPION: 2-hole and standard winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
KEEPER CORP. TRAKKER: KT2000 requires roller fairlead with a 4.875\" bolt pattern
SMITTYBILT: XRC 2.0 requires roller fairlead with a 4.875\" bolt pattern
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000 4-hole standard (3.00\" x 4.875\" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (standard ONLY) 4-hole standard 3.00\" x 4.875\" bolt pattern with rollers that are 4.875\" bolt pattern
Traveller: 1078088 / 1078302 require roller fairlead with a 4.875\" bolt pattern
QUADBOSS: RP25 / RP35
Possibly many others with standard mounting pattern of 4-hole 3.00\" x 4.875\" bolt pattern with rollers that are 4.875\" bolt pattern or 2-hole 3.10” with rollers that are 4.875” bolt pattern
Specification
Specification
Fitment
Fitment
| Make | Model | Year |
|---|---|---|
| Polaris | Sportsman 500 6x6 | 2005-2008 |
| Polaris | Sportsman 500 H.O. 4x4 | 2005-2006 |
| Polaris | Sportsman 500 H.O. 4x4 | 2008-2010 |
| Polaris | Sportsman X2 500 | 2006-2009 |
| Polaris | Sportsman 700 Twin | 2005-2006 |
| Polaris | Sportsman 700 Twin EFI | 2005-2006 |
| Polaris | Sportsman 800 EFI 4x4 | 2007-2010 |
| Polaris | Sportsman 400 4x4 | 2005 |
| Polaris | Sportsman 450 4x4 | 2006-2007 |
| Polaris | Sportsman 500 H.O. EFI 4x4 | 2006-2009 |
| Polaris | Sportsman Touring 550 EPS 4x4 | 2010 |
| Polaris | Sportsman 600 Twin 4x4 | 2005 |
| Polaris | Sportsman X2 800 | 2007 |
| Polaris | Sportsman X2 800 | 2009 |
| Polaris | Sportsman 500 MV 6x6 | 2009-2010 |
| Polaris | Sportsman 800 Twin EFI | 2005-2006 |
| Polaris | Sportsman Touring 800 EFI | 2008-2009 |
| Polaris | Sportsman X2 700 | 2008 |
Package Info
Package Info
| Property | Value |
|---|---|
| Weight | 8.1 |
| Height | 5.71 |
| Length | 16.77 |
| Width | 7.6 |
