KFI PRODUCTS

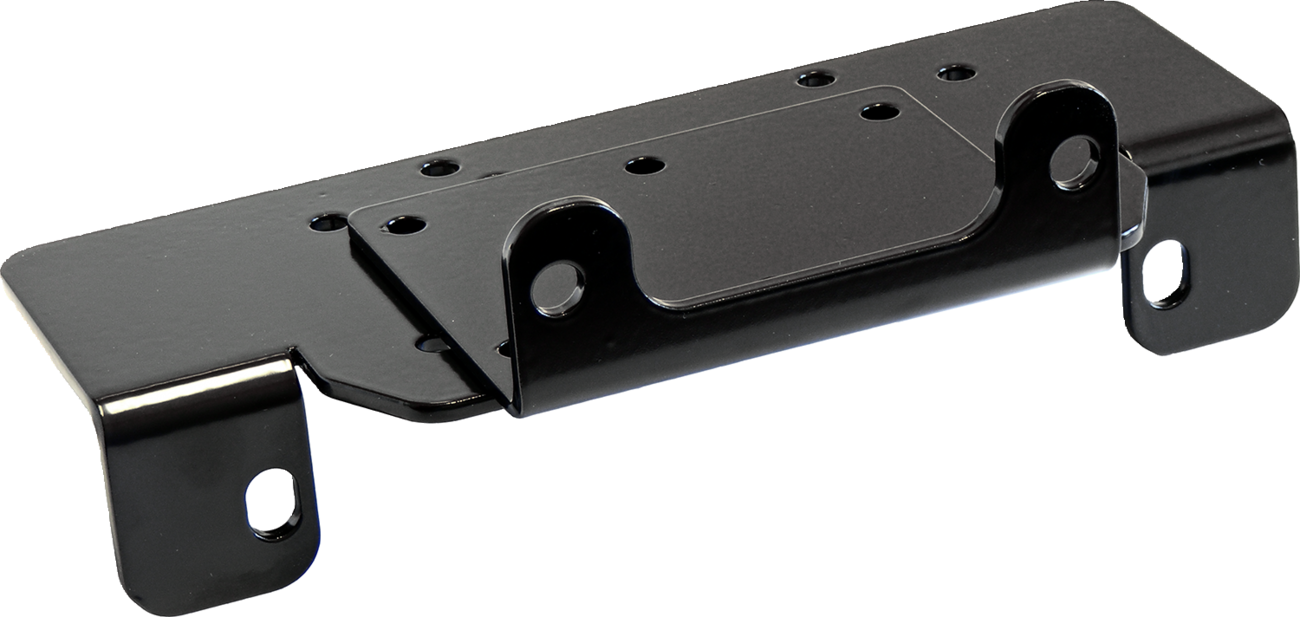

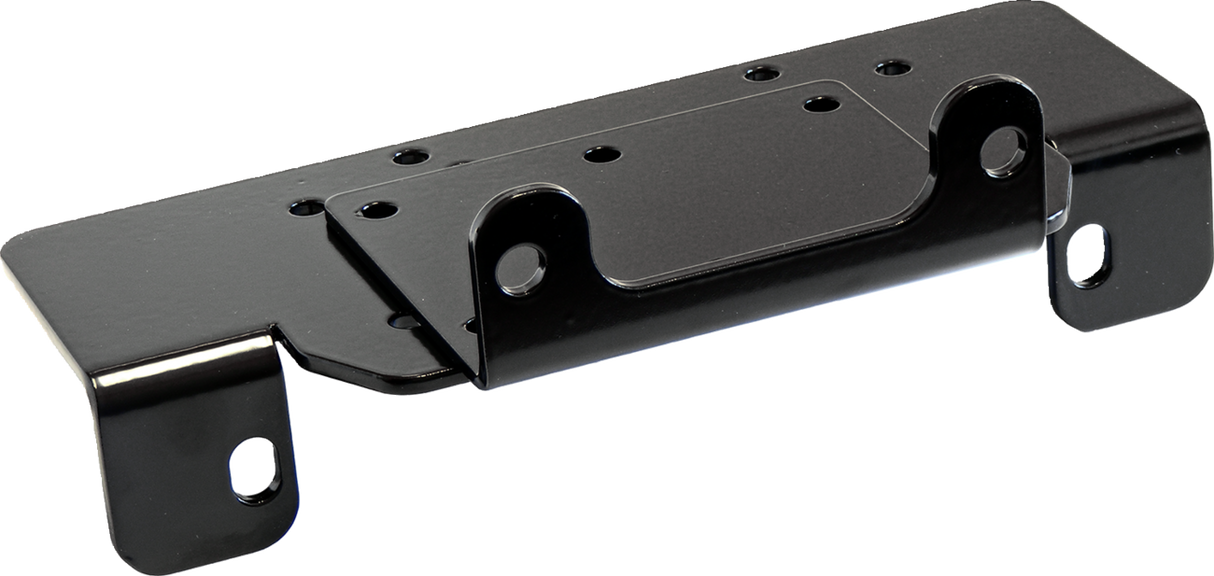

Winch Mount - Kubota 2007 - 2015

SKU: 4505-1151
$54.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

Constructed of 3/16\" steel

Includes standard roller fairlead bracket

Mounts are metal bead blasted before being powder-coated for best possible finish and durability

Very easy to install

Complete installation instructions and hardware included

100% made in the USA

Designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2

KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s

WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40

WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs

WARN: Vantage 4000 lbs / ProVantage 4500 lbs

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S (requires standard fairlead bracket #4505-1086)

WARN: VRX 45 / VRX 45-S (requires Wide fairlead bracket #4505-1073)

WARN: AXON 35 / AXON 35-S / AXON 45RC (requires Standard fairlead bracket #4505-1086)

WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S (requires Wide fairlead bracket #4505-1073)

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / LT2000 / UT3000

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

MASTER LOCK: 1500lbs #2955AT (requires roller fairlead with a 4.875\" bolt pattern such as #4505-0953)

CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500

BADLAND: 2-hole, standard, and wide winches

CHAMPION: 2-hole, ATV 4-hole, UTV 4-hole, and wide winches

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C

KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875\" bolt pattern)

SMITTYBILT: XRC 2.0 (requires roller fairlead with a 4.875\" bolt pattern such as #505-0953)

SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000 4-hole standard (3.00\" x 4.875\" bolt pattern)

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00\" x 4.875\" or 3.00\" x 6.600\" bolt pattern mount-up

Traveller: 1078311

Traveller: 1078088 / 1078302 (requires roller fairlead with a 4.875\" bolt pattern)

Possibly many others such as 4-hole 3.00\" x 4.875\" bolt pattern with rollers that are 4.875\" bolt pattern, 4-hole wide 3.00\" x 6.60\" bolt pattern with rollers that are 6.600\" or 6.000\" bolt pattern, or 2-hole 3.10\" with rollers that are 4.875\" bolt pattern

Roller fairlead and winch not included.

Specification
Color/Finish Powder-Coated / Black
Compatibility 1078311 / AM-25 / ATV2500 / KT2000 / KT3000 / KT3000C / RT / XT30 / SE45-R2 / Terra 3500 SR / Work Power 1500 / 1078088 / 1078302 / 2.5ci / KFI ST17 / PE2500 / PE3000 / XT25 / SE25 / Venom 4500 / VRX-35 / AS-25 / ATV3000 / KT2500 / KT4000 / PE3500 / SE35 / Terra45 / Venom 3000 / VMX2.5 / VRX-25S / VRX-35S / VRX-45S / X3000 / XRC 3.0 / 1.5ci / 2.5ce / 3.0ce / A3000 / AS-35 / Axon 35 / LT2000 / Provantage 2500 / Terra 4500 SR / Vantage 2000 / Vantage 3000 / Vantage 4000 / Work Power 2500 / X4000 / XRC 2.0 / 3.0ci / A2500 / A2500-R2 / AS-50x / Axon 45RC / Axon 45-s / Axon 55-s / KT2500C / PE2.5 / PE3.5 / XT15 / SE45w-R2 / U45w-R2 / XRC 4.0 / 3.0s / Axon 35-s / Axon 45 / KT4000c / Provantage 3500 / Terra 2500 SR / U45-R2 / UT3000 / Venom 2500 / Venom 3500 / VRX-45 / A2000 / AM-35 / Axon 55 / PE2000 / Powermax 2500 / Provantage 4500 / U2500 / Venom 5000 / VRX-25 / Powermax 3500 / XT40 / Venom 2000 / Venom 4000
Material Steel
Product Name Mounting Kit
Riding Style UTV
Type Winch
Units Each

Fitment
MakeModelYear
KubotaRTV11002009
KubotaRTV11002012-2013
KubotaRTV11002007
KubotaRTV11002010-2011
KubotaRTV11002008
KubotaRTV 11002014-2015

Package Info

PropertyValue
Weight5.82
Height4.69
Length12.52
Width5.79

KFI PRODUCTS

Winch Mount - Kubota 2007 - 2015

$54.95

Constructed of 3/16\" steel

Includes standard roller fairlead bracket

Mounts are metal bead blasted before being powder-coated for best possible finish and durability

Very easy to install

Complete installation instructions and hardware included

100% made in the USA

Designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2

KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s

WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40

WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs

WARN: Vantage 4000 lbs / ProVantage 4500 lbs

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S (requires standard fairlead bracket #4505-1086)

WARN: VRX 45 / VRX 45-S (requires Wide fairlead bracket #4505-1073)

WARN: AXON 35 / AXON 35-S / AXON 45RC (requires Standard fairlead bracket #4505-1086)

WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S (requires Wide fairlead bracket #4505-1073)

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / LT2000 / UT3000

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

MASTER LOCK: 1500lbs #2955AT (requires roller fairlead with a 4.875\" bolt pattern such as #4505-0953)

CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500

BADLAND: 2-hole, standard, and wide winches

CHAMPION: 2-hole, ATV 4-hole, UTV 4-hole, and wide winches

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C

KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875\" bolt pattern)

SMITTYBILT: XRC 2.0 (requires roller fairlead with a 4.875\" bolt pattern such as #505-0953)

SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000 4-hole standard (3.00\" x 4.875\" bolt pattern)

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00\" x 4.875\" or 3.00\" x 6.600\" bolt pattern mount-up

Traveller: 1078311

Traveller: 1078088 / 1078302 (requires roller fairlead with a 4.875\" bolt pattern)

Possibly many others such as 4-hole 3.00\" x 4.875\" bolt pattern with rollers that are 4.875\" bolt pattern, 4-hole wide 3.00\" x 6.60\" bolt pattern with rollers that are 6.600\" or 6.000\" bolt pattern, or 2-hole 3.10\" with rollers that are 4.875\" bolt pattern

Roller fairlead and winch not included.
