KFI PRODUCTS

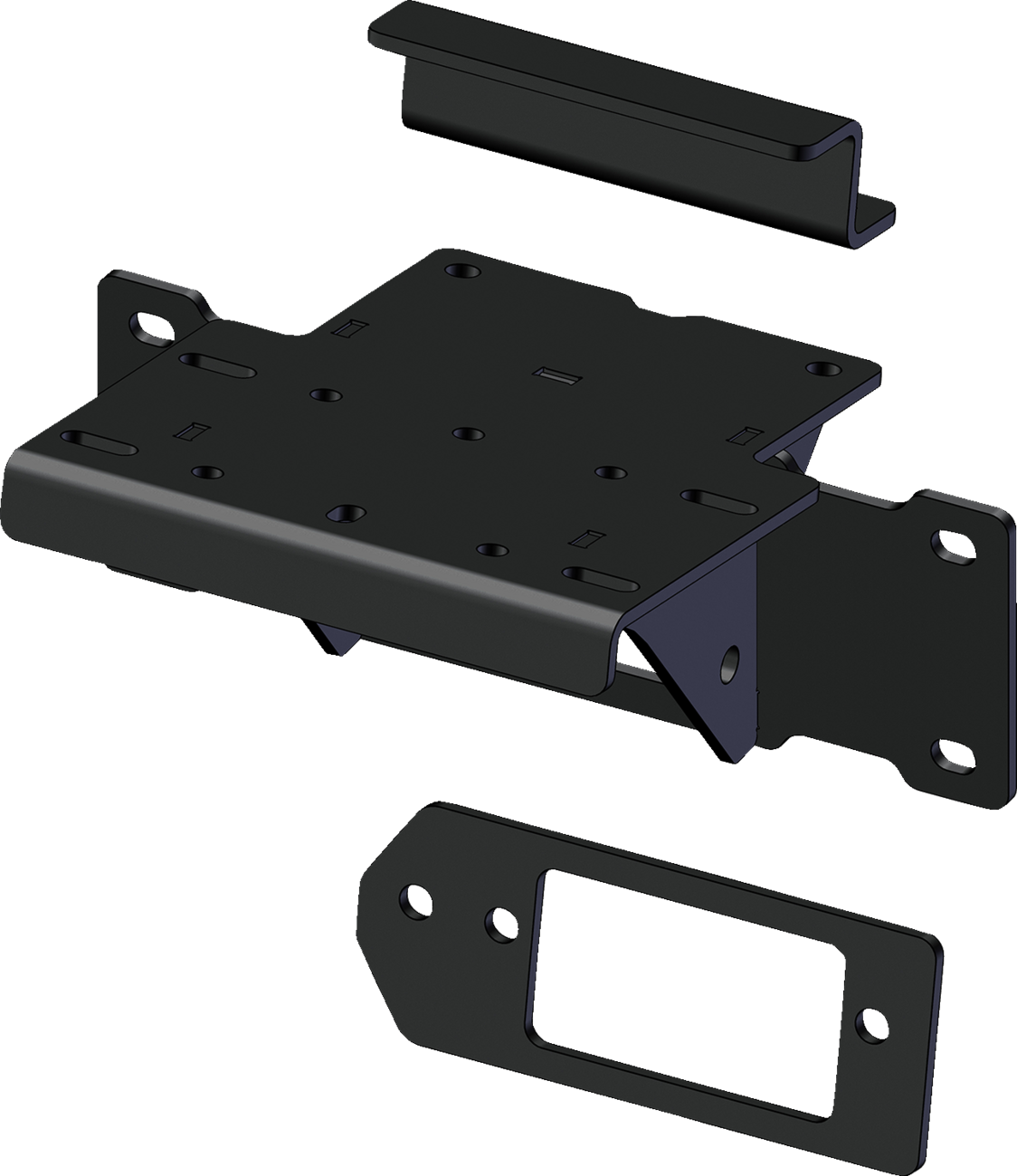

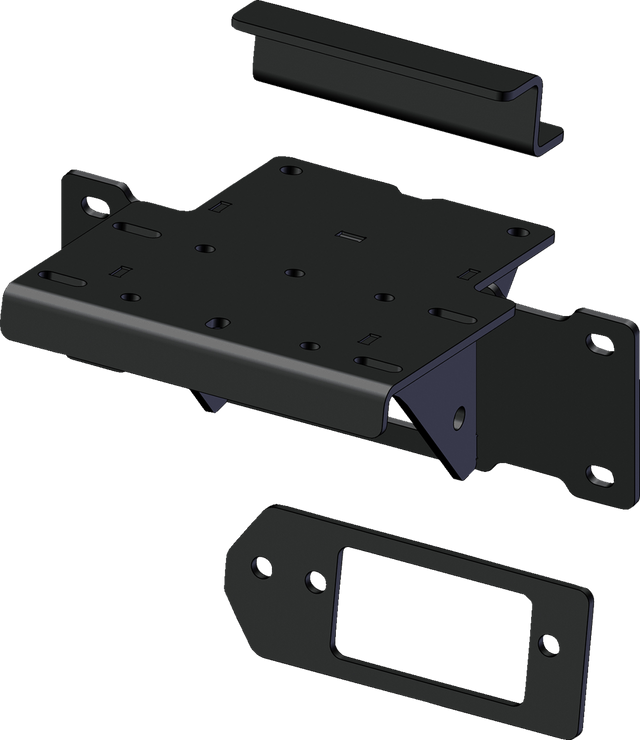

Winch Mount - Kawasaki 2024 - 2025

SKU: 4505-1142
$89.95
This product is vehicle specific

Select a vehicle to ensure fitment.

SELECT YOUR VEHICLE

Free shipping over $50!

free shipping to all orders over $50 to USA 48 states only.

Check if you qualify for the GIVE-AWAY !

On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More

USA based customer service

Call : 551-341-9472

PRODUCT DETAILS

Description

100% made in USA

Powder-coated black for supreme durability

Designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45-R2w / SE25 / SE35 / SE45-R2 / SE45w-R2

KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx

WARN (requires standard fairlead bracket #4505-1086): VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / AXON 35 / AXON 35-S / AXON 45RC

WARN (requires wide fairlead bracket #4505-1073): VRX 45 / VRX 45-S / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s

WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40

WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs

WARN: Vantage 4000 lbs / ProVantage 4500 lbs

May possibly fit other winches such as:

4-hole (3.00\" x 4.875\" bolt pattern with rollers that are 4.875\" bolt pattern)

4-hole WIDE (3.00\" x 6.60\" bolt pattern with rollers that are 6.600\" or 6.000\" bolt pattern)

2-hole (3.10\" with rollers that are 4.875\" bolt pattern)

Will NOT work with Kawasaki XR models with the following winches:

KFI: U45w-R2 / SE45w-R2 / AS-50wx

SUPERWINCH: TERRA 45 / LT4000UTV

SMITTYBUILT: XCR3.0 / XCR4.0

SUPERATV: WN-4500 / WN-6000 / 4500-W-N / WIN 00-001 / WIN 00-012 wide

MILEMARKER: PE5000 wide

BRONCO: 2500 / 3500 STD

BADLANDS: 2-hole, wide, or Apex 550 winches

CHAMPION: 2-hole or wide winches

TRAKKER: KT2000 / KT4000(C)

VENOM: 4500 / 5000 wide

TRAVELLER: 4500 wide

EAGLE: 2-hole 2000LBS

MASTERLOCK: 1500LB / 2955AT

Specification
Color/Finish Black / Powder-Coated
Compatibility 3.0ci / A2500 / Axon 45-s / Axon 55 / Axon 55-s / Provantage 4500 / 3.0ce / AS-35 / Axon 35 / Provantage 2500 / Provantage 3500 / U45-R2 / Vantage 3000 / Vantage 4000 / 1.5ci / 3.0s / A3000 / Axon 35-s / U2500 / Vantage 2000 / VRX-45 / 2.5ci / KFI ST17 / RT / XT25 / SE25 / VRX-35S / VRX-45S / AM-25 / XT30 / XT40 / AS-25 / SE35 / VRX-25S / VRX-35 / SE45-R2 / A2000 / A2500-R2 / AM-35 / XT15 / SE45w-R2 / U45w-R2 / VRX-25
Product Name Mounting Kit
Riding Style UTV
Type Winch
Units Each

Fitment
MakeModelYear
KawasakiKWF1000 Ridge XR HVAC2024
KawasakiKWF1000 Ridge2025
KawasakiKWF1000 Ridge HVAC2024
KawasakiKWF1000 Ridge XR2025
KawasakiKWF1000 Ridge XR Deluxe2025
KawasakiKWF1000 Ridge Limited2024
KawasakiKWF1000 Ridge Ranch Edition2024

Package Info

PropertyValue
Weight10.11
Height5.83
Length12.36
Width10.51
