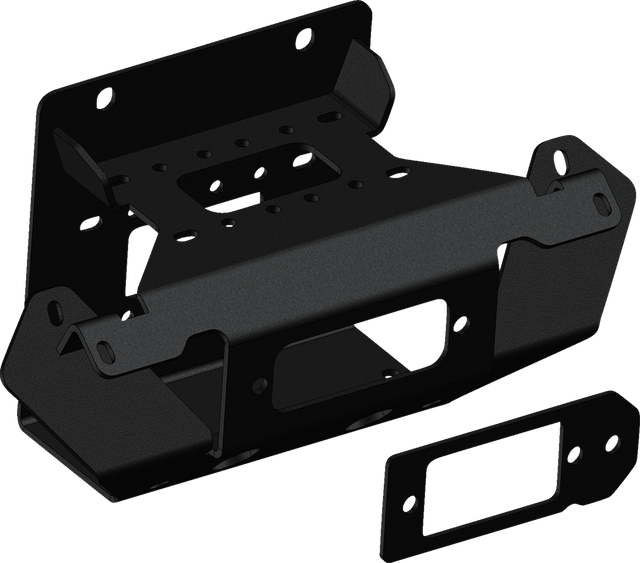

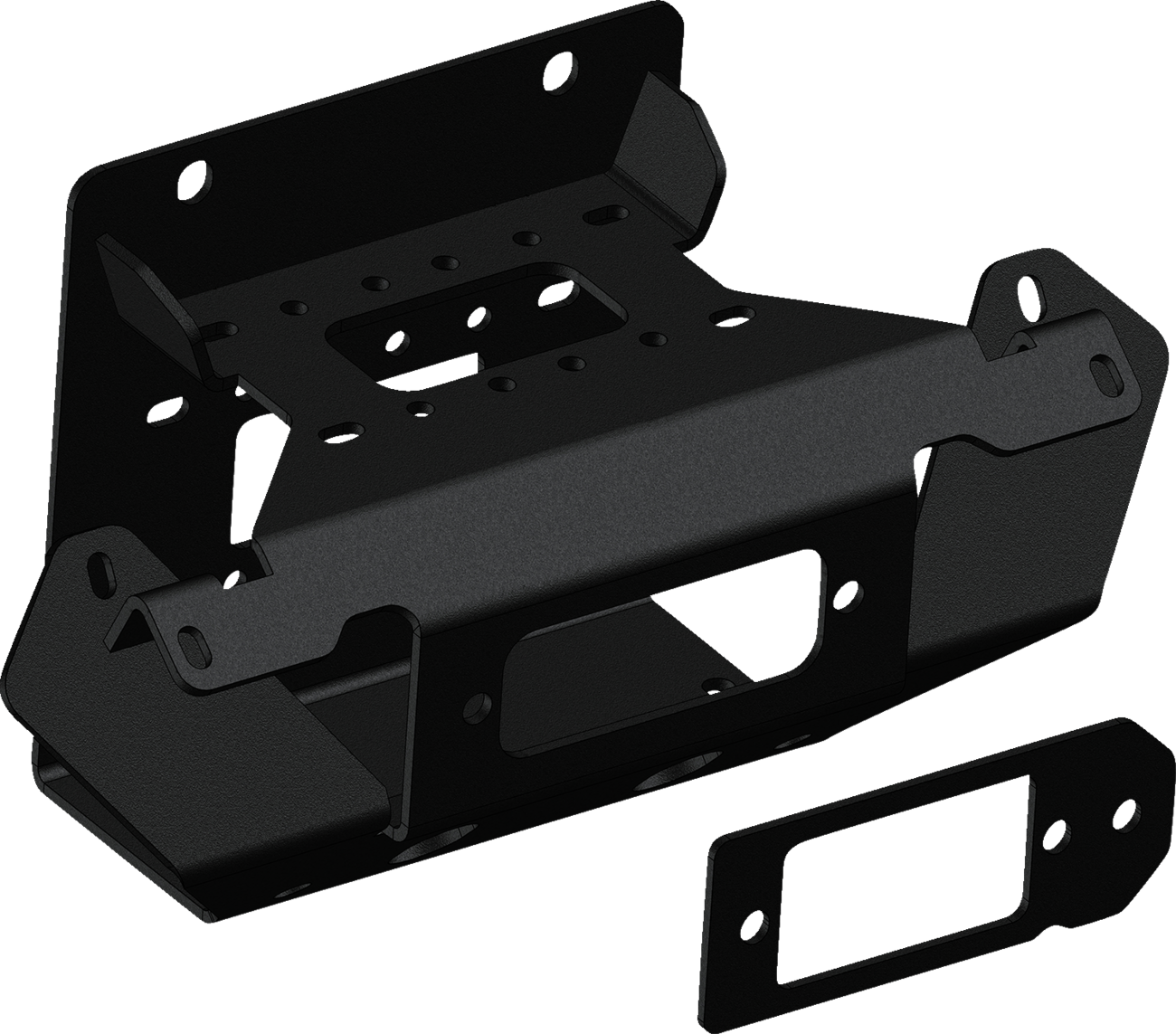

Winch Mount - Can-Am X3 2017 - 2024
SKU: 4505-1007Select a vehicle to ensure fitment.
Winch Mount - Can-Am X3 2017 - 2024 is backordered and will ship as soon as it is back in stock.
Free shipping over $50!
Free shipping over $50!
free shipping to all orders over $50 to USA 48 states only.
Check if you qualify for the GIVE-AWAY !
Check if you qualify for the GIVE-AWAY !
On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More
USA based customer service
USA based customer service
Call : 551-341-9472
PRODUCT DETAILS
Description
Description
Constructed of 3/16” steel
Metal bead blasted and powder coated for the best possible finish prep and durability
Complete installation instructions and mounting hardware included
100% made in the USA
Roller fairlead and winch not included.
Designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
WARN: Vantage 4000 lb / Provantage 4500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT requires roller fairlead with a 4.875\" bolt pattern
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND, CHAMPION: 2-hole, standard, and wide winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000 requires roller fairlead with a 4.875\" bolt pattern
SMITTYBILT: XRC 2.0 requires roller fairlead with a 4.875\" bolt pattern
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000 4-hole standard (3.00\" x 4.875\" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00\" x 4.875\" or 3.00\" x 6.600\" bolt pattern mount-up
Traveller: 1078311
Traveller: 1078088 / 1078302 require roller fairlead with a 4.875\" bolt pattern
QUADBOSS: RP25 / RP35
Possibly many others with standard mounting pattern of 4-hole 3.00\" x 4.875\" bolt pattern with rollers that are 5.875\" bolt pattern, 4-hole wide 3.00\" x 6.60\" bolt pattern, or 2-hole 3.10” with rollers that are 4.875” bolt pattern
Specification
Specification
Fitment
Fitment
| Make | Model | Year |
|---|---|---|
| Can-Am | Maverick X3 Max Turbo DS | 2021-2023 |
| Can-Am | Maverick X3 Max Turbo R | 2017-2019 |
| Can-Am | Maverick X3 Max Turbo R DS | 2020-2021 |
| Can-Am | Maverick X3 Max Turbo R X RS | 2017-2019 |
| Can-Am | Maverick X3 Max Turbo RR X RS | 2020-2023 |
| Can-Am | Maverick X3 Max Turbo RR X RS Smart-Shox | 2021-2024 |
| Can-Am | Maverick X3 Max Turbo | 2018-2020 |
| Can-Am | Maverick X3 Max Turbo R X DS | 2017-2019 |
| Can-Am | Maverick X3 Max Turbo RR DS | 2022-2023 |
| Can-Am | Maverick X3 Max Turbo R RS | 2020-2021 |
| Can-Am | Maverick X3 Max Turbo RR X DS | 2020-2023 |
| Can-Am | Maverick X3 Max Turbo RR X MR | 2020-2022 |
| Can-Am | Maverick X3 900 H.O. 4x4 | 2018 |
Package Info
Package Info
| Property | Value |
|---|---|
| Weight | 12.05 |
| Height | 8.5 |
| Length | 20.25 |
| Width | 10.5 |
