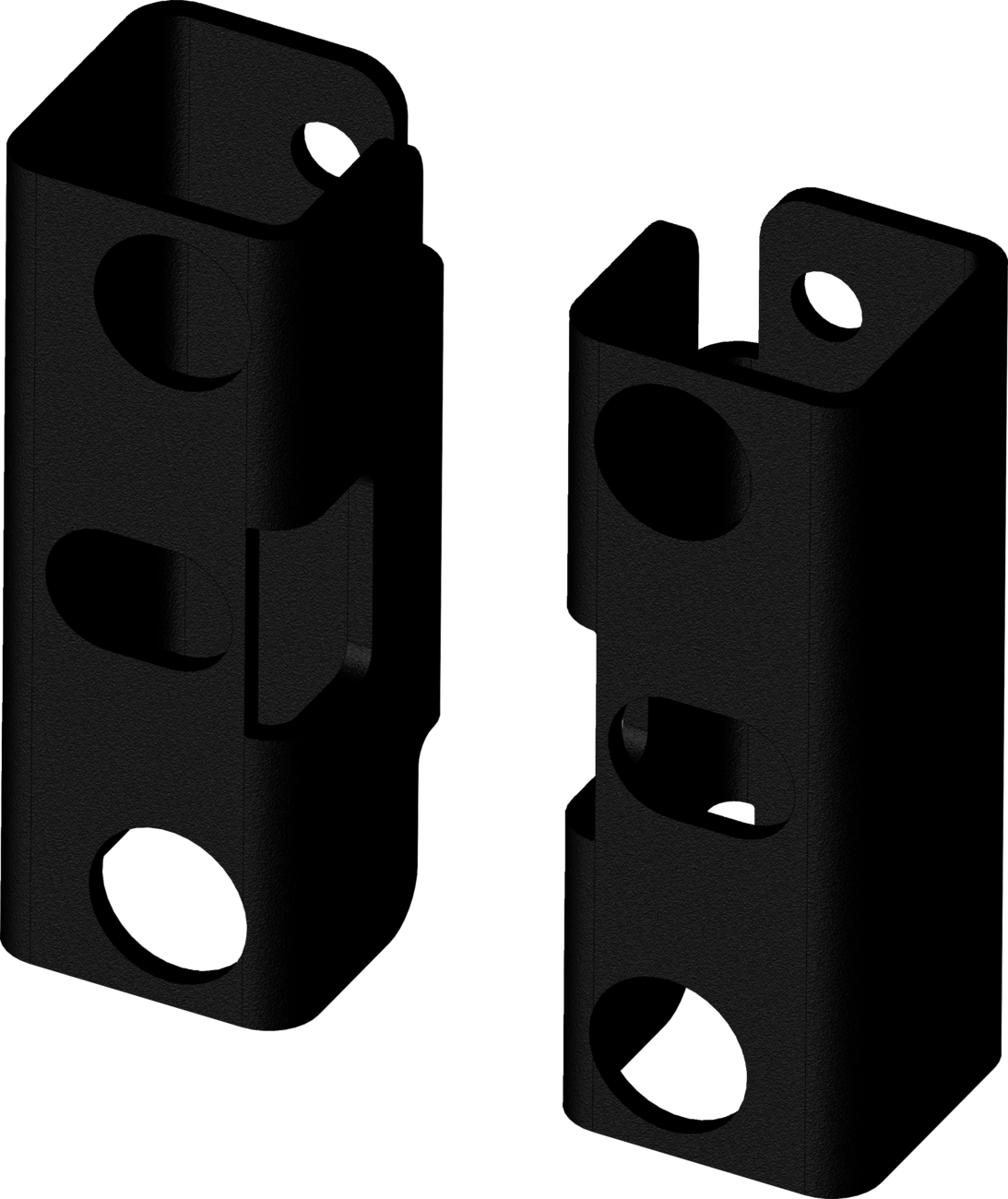

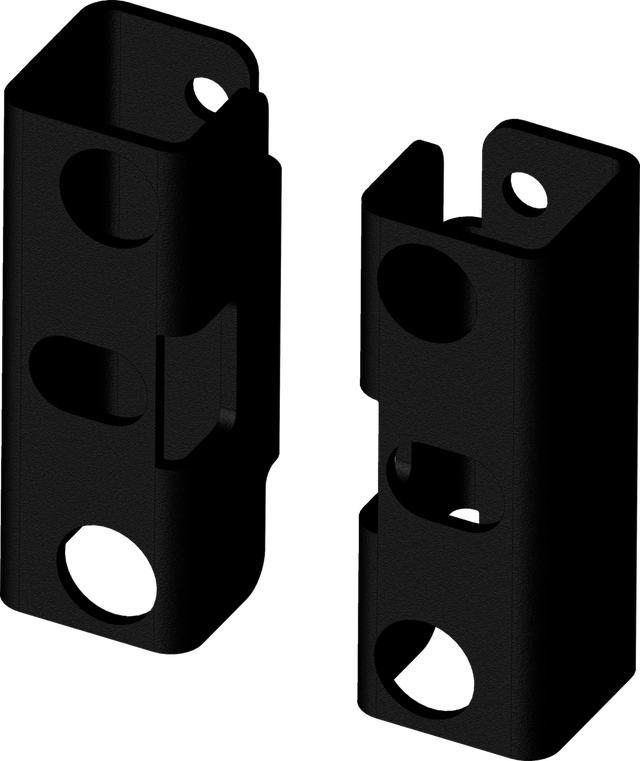

Fairlead Bracket - Arctic Cat 2015 - 2017
SKU: 4505-1156Select a vehicle to ensure fitment.
Fairlead Bracket - Arctic Cat 2015 - 2017 is backordered and will ship as soon as it is back in stock.
Free shipping over $50!
Free shipping over $50!
free shipping to all orders over $50 to USA 48 states only.
Check if you qualify for the GIVE-AWAY !
Check if you qualify for the GIVE-AWAY !
On September 1st we will be drawing out the winner of our giveaway and the winner will be getting….. Read More
USA based customer service
USA based customer service
Call : 551-341-9472
PRODUCT DETAILS
Description
Description
Constructed of 1/4\" steel
Metal bead blasted then powder-coated for best possible finish prep and durability
Very easy to install
Complete installation instructions included
100% made in the USA
Mount designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs
WARN: Vantage 4000 lbs / ProVantage 4500 lbs (will use wide fairlead that comes with winch)
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY: Work Power 2500 / PowerMax 2500 and 3500
BADLAND, CHAMPION: 2-hole winches (requires additional part #4505-1069)
BADLAND: standard and wide winches
CHAMPION: ATV 4-hole, UTV 4-hole, and wide winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875\" bolt pattern and additional part #4505-1069)
SMITTYBILT: XRC 2.0 (requires additional part #4505-1069)
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) with 3.00\" x 4.875\" or 3.00\" x 6.600\" bolt pattern mount-up
Traveller: 1078311
Traveller: 1078088 / 1078302 (require roller fairlead with a 4.875\" bolt pattern)
QUADBOSS: RP25 / RP35
Possibly many others with 4-hole (3.00\" x 4.875\" bolt pattern with rollers that are 4.875\" bolt pattern) or 4-hole wide (3.00\" x 6.60\" bolt pattern with rollers that are 6.600\" or 6.000\" bolt pattern) or 2-hole (3.10\" with rollers that are 4.875\" bolt pattern and additional part #4505-1069)
Roller fairlead and winch not included.
If you have a 2-hole winch you will need to purchase additional part #4505-1069.
Specification
Specification
Fitment
Fitment
| Make | Model | Year |
|---|---|---|
| Arctic Cat | Prowler 700 HDX 4x4 | 2016-2017 |
| Arctic Cat | Prowler 550 EFI 4x4 | 2015 |
| Arctic Cat | Prowler 500 HDX 4x4 | 2016-2017 |
| Arctic Cat | Prowler 550 | 2015 |
| Arctic Cat | Prowler 700 | 2017 |
| Arctic Cat | Prowler 700 | 2015-2016 |
| Arctic Cat | Prowler 1000 | 2015-2016 |
| Arctic Cat | Prowler 700 HDX Crew | 2017 |
Package Info
Package Info
| Property | Value |
|---|---|
| Weight | 1.6 |
| Height | 3.25 |
| Length | 5.75 |
| Width | 4.5 |
